Modifiers

Every modifier, one block each: its preview, what it does, and what each control means, together. A modifier sits between an effect and the output: it reshapes where pixels land (or masks them) without changing the effect's drawing. Modifiers compose: a Layer folds its whole modifier stack each rebuild; a dynamic modifier (one that overrides modifyLive) also runs a per-frame pass, and an animated one keeps a static fold but rebuilds it on its own clock. See ModifierBase for the static-vs-dynamic split. Each block's emoji are its tags() (see the tag emoji legend); Kind is static (baked into the mapping at rebuild) or dynamic (per-frame remap). Modifiers are grouped into sections, and each block carries that modifier's preview, behavior, and control descriptions together. (For how this page maps to the source/asset folders, see the folder-structure decision.)

A modifier folds coordinates rather than drawing, so it reaches for very little of the shared power function toolbox — that page states the split and lists which modifiers use what.

MoonLight modifiers

Module	Details

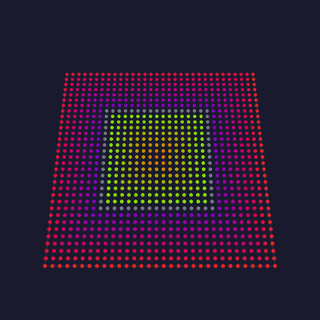

Block 💫 · static Expands a 1D effect into concentric square rings (Chebyshev distance from the center): the effect's linear position becomes the ring index, so a gradient effect draws nested squares.	— Tests: Block API: reference Details: none yet

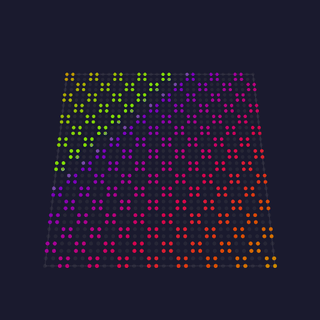

Checkerboard 💫 · static Masks the layer in a checkerboard: "off" squares are dropped, "on" squares pass through unchanged.	size — checker square edge in lights (1–64).invert — flip which squares pass through vs are masked. Tests: Checkerboard API: reference Details: none yet

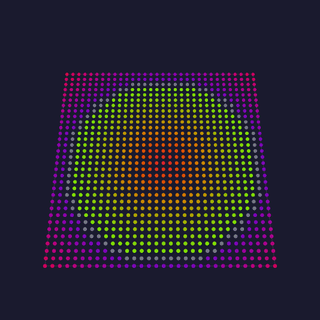

Circle 💫 · static Expands a 1D effect into concentric circular rings (Euclidean distance from the center): the effect's linear position becomes the radius, so a gradient effect draws nested circles. The circular counterpart to Block.	— Tests: Circle API: reference Details: none yet

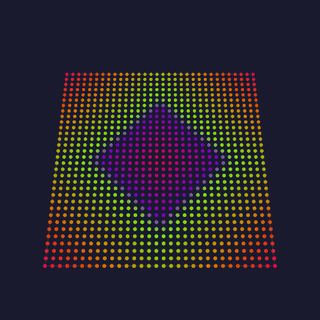

Mirror 💫 · static Folds the far half of the box back onto the near half per axis, mirroring the image across the box center (top-left quadrant reflected into the others in 2D, near octant into all eight in 3D).	mirrorX / mirrorY / mirrorZ — mirror across the center on that axis. Tests: Mirror API: reference Details: none yet

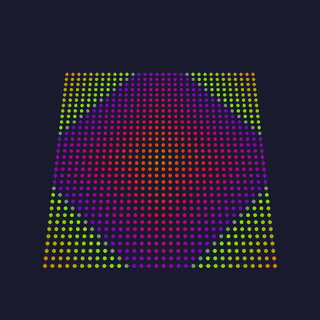

Multiply 💫 · static Tiles the logical image across the box multiply times per axis, optionally mirroring alternate tiles (a pure mirror is multiply = 2, mirror = true).	multiplyX / multiplyY / multiplyZ — tiles per axis, 1 meaning none.mirrorX / mirrorY / mirrorZ — reflect alternate tiles on that axis. Tests: Multiply API: reference Details: none yet

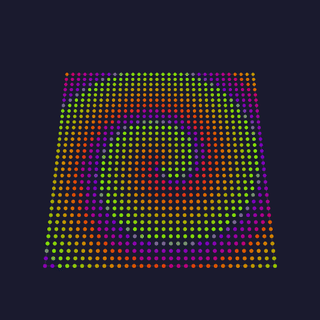

Pinwheel 💫 · static Remaps the grid into radial petals around the center — the angle to each pixel picks its petal, with an optional swirl (angle sheared by radius), symmetry, and z-twist. Turns a linear or 2D effect into a rotating flower/spokes pattern.	petals — number of petals radiating from the center.swirl — shear the angle by radius (−127..127; a spiral; negative reverses).reverse — reverse the petal order.symmetry — fold the petals into a factor-of-360 symmetry.zTwist — twist the petals along z (3D). Tests: Pinwheel API: reference Details: none yet

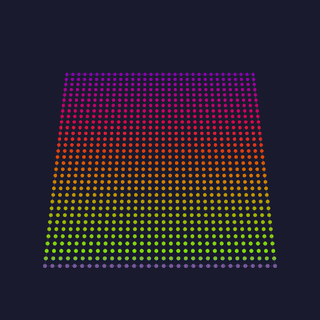

RippleXZ 💫 · static Collapses an axis to a single plane so a higher-dimensional effect ripples along the remaining axes — used to drive a 1D→2D/3D ripple.	shrink — collapse the selected axis (on = collapse).towardsX / towardsZ — which axis collapses to a single line. Tests: RippleXZ API: reference Details: none yet

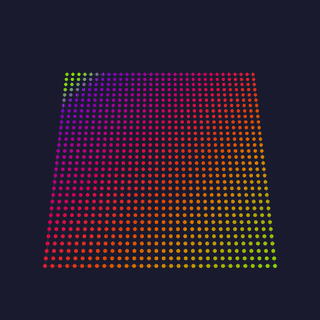

Transpose 💫 · static Swaps a pair of box axes (and every coordinate through them), then optionally inverts each axis — rotate/flip the image without redrawing the effect.	XY / XZ / YZ — swap that pair of axes.inverse X / inverse Y / inverse Z — flip that axis after the swap. Tests: Transpose API: reference Details: none yet

MoonLight-native modifiers

Module	Details

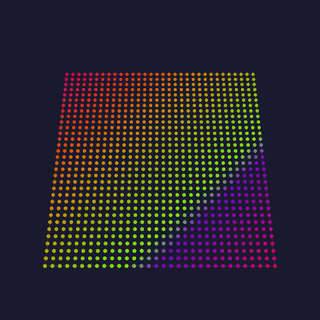

MoonLive · static The coordinate transform written as text on the running device: mirror the pattern, shift it, swap its axes. Each hand-written modifier is a class and a reflash, where a script is a line of text applied as you type. The language is MoonLive.	script — which .mlm file runs, picked from the library and edited here.Everything the script declares appears as a real control. Tests: MoonLive API: reference · what a script transforms Details: MoonLive, details

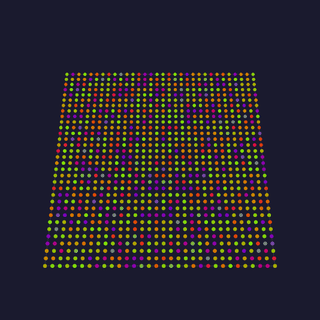

RandomMap 💫 · animated Remaps every light to another via a true 1:1 permutation, reshuffling to a fresh permutation on a bpm timer — the arrangement scrambles each beat, the content is untouched.	bpm — reshuffles per minute, 0 freezing the permutation. Tests: RandomMap API: reference Details: none yet

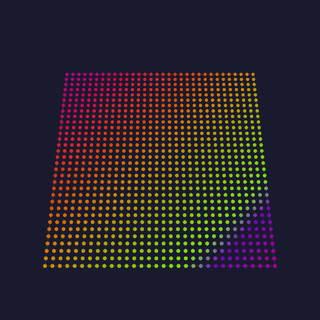

Region 💫 · static Carves the layer to a sub-rectangle given as percentages of the physical extent (so it survives a resize); outside the region is dark.	startX … endZ — the bounds as percentages of each axis. Tests: Region API: reference Details: none yet

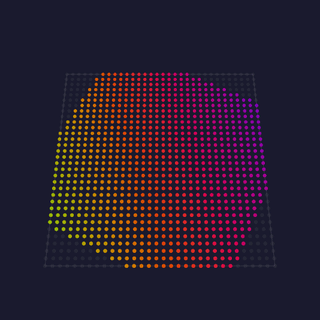

Rotate 💫 · dynamic Rotates the 2D image around its center, turning continuously over time (the codebase's transform-matrix reference).	speed — rotation speed (1–255; turns faster as it rises). Tests: Rotate API: reference Details: none yet

MoonLive, details

One coordinate at a time

The script transforms one coordinate and needs no loop, because the Layer already calls it once per physical light while building its mapping.

class MirrorModifier {
  void modifyLogical() { setXYZ(width - 1 - xPos, yPos, zPos); }
}

setXYZ(x, y, z) writes the transformed position, mirroring setRGB(index, r, g, b).

Read the grid rather than assuming it

width matters more than it looks. A mirror written against a fixed 255 sends every light of a 16-wide grid outside the grid, the Layer discards each one as out of bounds, and the fixture goes black with no error anywhere, because the script itself ran perfectly.

A computed coordinate is full width. setXYZ hands its three values to the binding as a call rather than storing them as bytes, so setXYZ(767 - xPos, ...) on a 768-wide wall arrives as 767. It was an inline three-byte store once, and that is the bug it caused.

What a script cannot do

A modifier has two hooks: one reshapes the logical box once per rebuild, and one folds each coordinate. A script drives only the second. Transforms keeping the box the same size work, and one that halves it, as the built-in Mirror does, needs the compiled modifier.

A script that fails to compile shows the parse error and the mapping passes coordinates straight through, so the transform disappears until the script parses again and the device keeps rendering.
