Architecture

This document is the agreed-up-front architecture contract: what projectMM is designed to be. Most of it describes the system as it is today; a few load-bearing design decisions are settled but not yet implemented. Those are marked 🚧: designed, not implemented yet (high priority for release 2). The 🚧 marker means the design is committed (this is how it will work, and code should be written toward it), not that it's optional or undecided. Anything without the marker is live today.

Coding conventions live in coding-standards.md; how to build and run lives in building.md; what is tested lives in testing.md.

Contents

The problem

Build a modular runtime for resource-constrained embedded devices that the same source compiles for, unmodified, on ESP32, Teensy, desktop, and Raspberry Pi. The runtime must:

  • Compose behaviour from small, uniform units (modules) that can be created, configured, reordered, and removed at runtime, including from a network API.

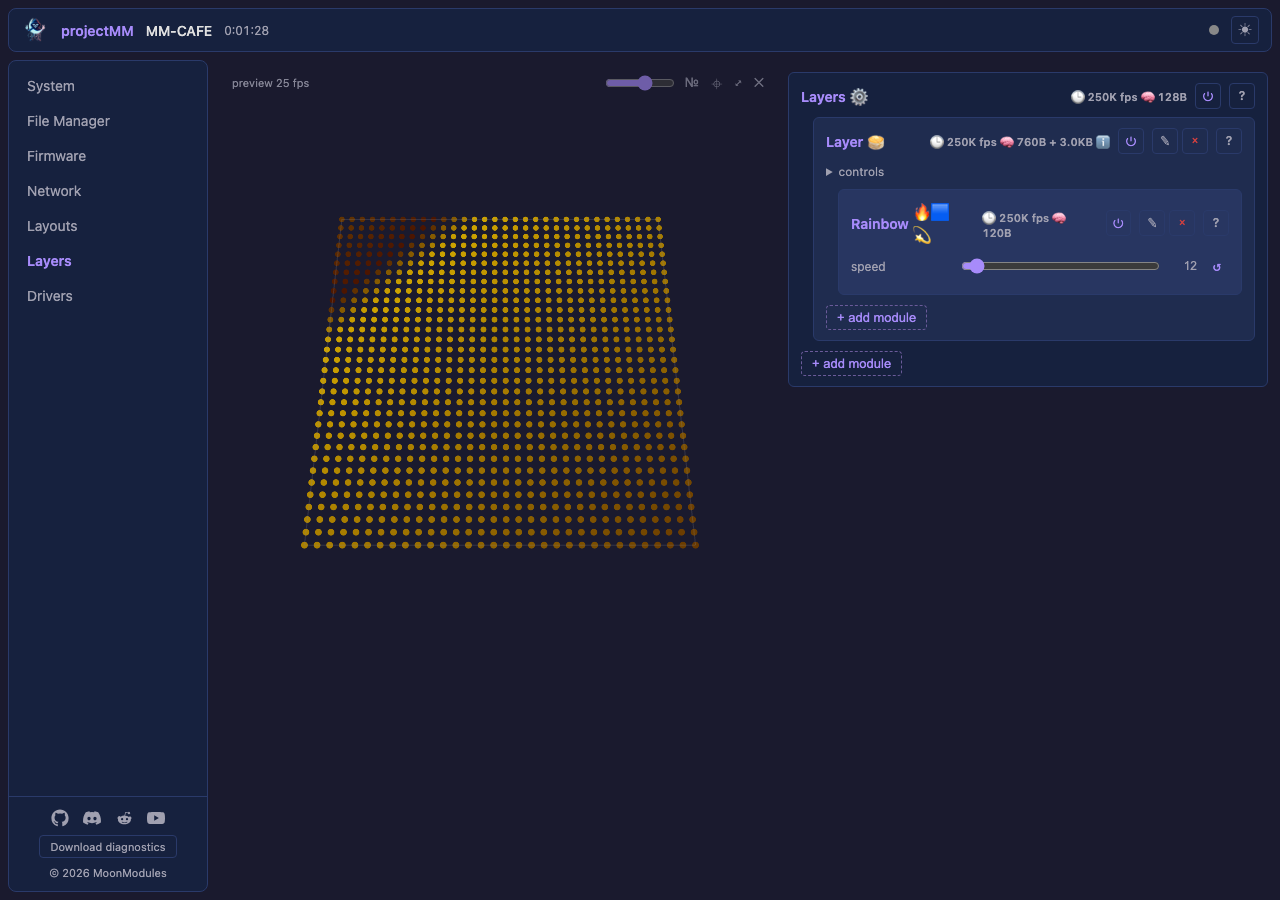

  • Expose every module's parameters generically so a single web UI renders any module with zero per-module UI code.
  • Run a hot loop with predictable timing and zero steady-state heap allocation on devices with as little as ~320 KB of RAM.
  • Persist configuration across reboots, exploit multiple CPU cores where present, and keep all platform-specific code behind one boundary.

The first concrete use of this runtime is lighting: drive 10,000+ addressable LEDs and DMX fixtures (RGB(W) pars, moving heads, dimmers) across multiple synchronised devices at high frame rates. The runtime is general enough that other real-time domains (audio synthesis, motor control) could be layered on the same way; lighting is the only domain implemented today.

Core and light domain

The system is two layers, separated as much as practical:

  • Core: MoonModule base, controls, scheduling, persistence, platform abstraction, system services (HTTP, WiFi, filesystem). Domain-neutral. Knows nothing about lights.
  • Light domain: light values, layouts, layers, mapping, blending, effects, modifiers, LED drivers, ArtNet/DDP. Built on top of the core.

When mixing is needed (for performance or simplicity), it must be an explicit decision: consciously choosing minimalism over separation, not accidentally blurring the boundary. Use domain-neutral naming in those cases ("producer buffer" not "LED buffer", "output driver" not "LED driver" in core interfaces) to keep the door open for future separation.

Core

The core's job is the runtime: modules, their lifecycle, their parameters, how they're scheduled, how they're persisted, how they reach the platform underneath.

MoonModules

The core building block is a MoonModule. Everything is a MoonModule, not just effects, modifiers, layouts, and drivers, but also system infrastructure (HTTP server, WebSocket server, file server, WiFi, mDNS, OTA updates) and services (sensors and actuators bridging to hardware/network). The core itself is minimal: MoonModule base, buffer management, a Scheduler.

This means:

  • Every MoonModule shares the same class structure, lifecycle (setup, tick, release), and controls. Learn the pattern once, apply it everywhere.
  • System services get controls for free: HTTP port, WiFi SSID, mDNS hostname are all configurable through the same UI as effect parameters.
  • Capabilities are modular: no WiFi? don't load the WiFi MoonModule. No #ifdefs needed.
  • System MoonModules that listen (HTTP, WebSocket) poll in their tick(), the standard pattern for embedded servers.
  • The scheduler handles init-order dependencies between system MoonModules (e.g. WiFi before HTTP, HTTP before WebSocket).

Modules can be added, replaced, reordered, or removed at runtime. On removal (release), all allocated resources are cleaned up.

Lifecycle propagation to children

A MoonModule that owns children gets the standard lifecycle methods propagated to them automatically:

  • setup() and release(): chain into children. Teardown reverse-iterates so children clean up before the parent does.
  • tick(), tick20ms(), tick1s(): tick each child gated by the same rule the Scheduler applies to top-level modules (!respectsEnabled() || enabled(), where modules that opted out of the enabled gate keep ticking, the rest tick only when enabled), with per-child timing accumulated into the child's own tickTimeUs().
  • defineControls() and prepare(): chain into children.

This means a container module gets correct lifecycle handling for its children without writing the iteration itself. Leaf modules (no children) pay one predicted-not-taken branch per call, sub-nanosecond. When a container overrides one of these methods to add its own work, the chain-to-base convention (parent-before vs child-before per callback) lives in coding-standards.md Β§ Override-and-chain convention.

ModuleFactory is a static registry mapping type names (strings) to create functions. The HTTP API uses it to create modules at runtime (POST /api/modules {"type":"NoiseEffect"}); the main pipeline in main.cpp constructs modules directly. Registration captures sizeof(T) for memory reporting:

ModuleFactory::registerType<NoiseEffect>("NoiseEffect");

ModuleFactory is core infrastructure (src/core/ModuleFactory.h), not itself a MoonModule.

Dynamic over fixed-size. Children, module lists, control sets, anything structural, grow on demand from the heap during setup(). Fixed-size arrays impose arbitrary limits, waste memory on instances that don't use the full capacity, and cost memory on instances that need none (e.g. leaf modules with zero children). The hot path only iterates these arrays: same pointer arithmetic as a fixed array, no performance difference.

Self-reporting. Every MoonModule reports its own footprint and cost: classSize() (the sizeof of the class instance, captured at registration), dynamicBytes() (heap allocated during prepare), and tickTimeUs() (average time its tick took, accumulated per tick). These surface in /api/system, console output, and scenario tests: the same numbers for an effect, a driver, or a system service, because they're a base-class feature, not a light-domain one.

Each MoonModule has two documentation surfaces under docs/moonmodules/: an end-user summary page β€” one 4-column table row in its group's page (effects/modifiers/layouts/drivers, or core/light UI/supporting) β€” and a generated technical page built from the header's /// comments. See coding-standards Β§ Documentation model for the full model.

Controls

Every MoonModule exposes controls: runtime-configurable parameters visible in the web UI. A grid layout exposes width, height, depth. An ArtNet driver exposes destination IP and universe. A fire effect exposes speed, cooling, sparking.

Controls bind to MoonModule member variables. The variable's default is the control's default. The hot path reads the variable directly, no function call. When a control value changes, the system notifies the owning MoonModule for cold-path reactions: recompute a derived table, re-size a buffer, re-bind a socket (the three-tier mechanism is Β§ Event triggering between modules).

Controls are dynamic: when a value changes, the control set can be rebuilt. A select control that picks a mode can show/hide other controls based on the choice.

Prefer uint8_t (0–255) for slider controls. Minimises per-control memory, aligns with DMX channel values, keeps the UI range manageable.

Controls are the bridge between the web UI and the running module tree: the UI renders a control from what the MoonModule declares, and a value the user changes there writes straight back into the module's member variable. The exact control types (slider, toggle, colour picker, text input, dropdown) are defined in the UI spec. The principle: modules declare what they need, the UI renders it.

Persistence

Control values and each module's enabled flag are persisted to flash so settings survive a reboot. The mechanism lives in FilesystemModule:

  • Storage: one flat JSON file per top-level module under /.config/<TypeName>.json. Children are encoded positionally with <index>. key prefixes β€” a deliberately flat file shape loaded by the cheap first-match key helpers in core/JsonUtil.h. A control whose value is structured (a List control's array of objects) round-trips that array with the recursive reader in the same header, via the control's own restore hook; the file's top level stays flat, the structure lives inside one control's value.
  • Lifecycle: Scheduler::setup() runs four phases: (1) defineControls binds every module's full control set, (2) the FilesystemModule load hook overlays persisted values onto the bound variables, (2b) rebuildControls re-evaluates conditional hidden flags against the loaded state, (3) each module's own setup() runs with persisted values already in member variables, (4) prepare sizes buffers. Modules themselves know nothing about persistence; they just bind their variables.
  • Save trigger: HttpServerModule marks the target module dirty on every successful control mutation. FilesystemModule debounces 2 s in tick1s(), walks the tree, writes any subtree containing a dirty descendant via atomic write-and-rename.
  • Conditional controls: every conditional control is always bound; the module sets a hidden flag (controls_.setHidden(i, …)) to tell the UI not to render it. The load path can therefore find persisted values regardless of the live conditional state.
  • Code-wired children survive a stale file: some children aren't created by the user; main.cpp's boot wiring attaches them (ImprovProvisioningModule under NetworkModule; NetworkSendDriver, PreviewDriver under their parents). Each such child calls markWiredByCode() after addChild(), a one-bit flag meaning "I belong here because the code put me here, not because a saved file or a user asked for me." The problem it solves: persistence reconciles the live tree to match the saved JSON, so a child that exists in code but is absent from an older saved file (written before that child was added) would be trimmed on load. The flag tells the apply step to keep it. Children added through the HTTP API or recreated from JSON stay unmarked; those follow the file's tree shape exactly, so UI deletes still take effect.

Persistence reaches the Scheduler through a function-pointer hook (setLoadAllHook) the load phase calls if set: FilesystemModule registers its load routine there at startup, so the Scheduler never names FilesystemModule (no circular dependency, persistence stays optional; a null hook means defaults-only). The choice of a flat POD image over a JSON format, and of load-before-setup, is ADR-0001.

Parallelism

On multi-core systems (ESP32 has 2 cores, desktop / RPi have many), the system exploits parallelism by assigning MoonModules to specific cores. Each MoonModule can declare a core affinity. The scheduler respects this when pinning tasks. On single-core or desktop systems, affinity is ignored and everything runs on available threads.

The model is producers vs consumers: producers generate data, consumers process and output it. The light domain instantiates it concretely: effects are producers, drivers are consumers.

The render↔output split. Drivers owns one switch, multicore (default on): when it engages, a core-1 task runs the whole output stage β€” every driver's tick(), so the LED encode, the ArtNet packet build and the preview frame build all leave the render core β€” while core 0 renders the next frame and services HTTP/WiFi/WS. A frame therefore costs max(render, output) instead of render + output. There is deliberately no per-driver opt-out: the container owns the mechanism (the handoff buffer, the task, the frame boundary), so there is one split, not one per driver.

The hand-off is the single shared output buffer plus a frame boundary, not a held lock: core 0 waits on an atomic encodeDone_ before overwriting the buffer, so the cheap composite is the only serialization point and the two heavy stages (render, encode) overlap. It is allocate-and-degrade β€” the split engages only when a driver exists and the handoff buffer allocates, so a memory-tight board never lands in a half-split state; it simply runs every driver inline on core 0 exactly as before, and the split re-engages by itself when the memory is there.

Two contracts make it safe against a live, mutating tree, and both live in core so no module has to remember them:

  • MoonModule::quiesce() β€” core calls it on the parent before every structural mutation (addChild / removeChild / replaceChildAt), because a mutation frees or reallocates memory the worker may be walking. See Β§ Controls above.
  • BinaryBroadcaster::tryAcquireSend() / releaseSend() β€” the WebSocket sender has two producers on two cores once the split engages: core 0 (the transport's own tick20ms drain, the 1 Hz state push, connect/disconnect) and core 1 (the offloaded PreviewDriver, which arms a frame and streams its coordinate table). A producer brackets its whole message in the lease, so a multi-call stream (begin/push/end) can't have another core's write land between its parts, and a frame arm can't race the drain reading the slot. It is try-acquire, never blocking β€” the hot-path rule forbids a render or encode thread waiting on a peer β€” so whoever loses the race skips its slot, which for the preview is the same back-off its adaptive frame rate already takes when the link is behind. A lost race costs one preview frame; a blocked encode thread would stall the LEDs.

A driver that writes a socket still hands its bytes to lwIP on core 0 (that is where the stack is pinned): the CPU half offloads, the send itself does not move. That is the intent, not a leak β€” the measured cost is ~100 Β΅s/frame against ~13,000 Β΅s of output work removed.

Which buffers play the double-buffer role is covered in Β§ Memory strategy.

Data exchange between modules

When one module produces data another module reads on the hot path, the pattern is the same throughout the codebase. Two shapes, both core-defined and domain-neutral:

Shared-struct (pull). The reader holds a pointer to the producer's data and reads it when it needs it.

  • The producer owns a small POD struct as a member, overwritten in place each tick. No allocation per frame.
  • A plain-data header declares the struct. Both producer and consumer include it; neither needs to know the other's class.
  • The producer exposes the struct via a const-returning getter (or a setX(const Foo*) setter on the consumer).
  • The consumer holds a const Foo* received once at wiring time in main.cpp, and reads it on the hot path each frame.

No registry, no subscription, no event bus. The consumer reads the latest value when it needs it; if the producer wrote nothing this tick, the consumer sees the previous value (acceptable for the kinds of data this exchanges: small state structs, periodic captures). This pull pattern is lock-free for a small POD struct overwritten in place: a reader on another core might catch a half-updated struct, but the result is one slightly-inconsistent read of a few fields that self-corrects next tick, visually harmless for the gyro/sensor data this carries, and cheaper than a lock. That tolerance does not extend to a large frame buffer the consumer copies out wholesale (an LED DMA buffer, an ArtNet packet): there a half-written read is a visible glitch, so that hand-off uses the 🚧 two-core double-buffer swap from § Parallelism, not this lock-free pull.

Push through a domain-neutral sink. When the producer should hand bytes to a generic core service rather than expose a struct, the core defines a narrow interface and the producer pushes to it. The producer owns the data and its wire format; the core sink (the interface's implementer) knows only "take these bytes and do my generic job"; it has zero knowledge of what the bytes mean or which domain produced them. BinaryBroadcaster (HttpServerModule implements it: "broadcast these bytes to all WebSocket clients") is the example; the producer side lives in the light domain (see Β§ The pipeline).

Both shapes extend to any future producer/consumer pair (a sensor owning a state struct read through a const Foo*; a module pushing bytes to a core sink). Neither is pub/sub, and the reasons this project chose pull + a prepare-pass over an event bus are ADR-0011.

Event triggering between modules

A control changes, or the module tree is mutated (a child added, deleted, replaced, moved), and other modules may need to react. The framework provides a three-tier split so each change costs only as much as it has to, from cheapest to most expensive:

  1. onControlChanged(controlName): runs on every control change, but only on the module whose own control changed. A cheap, in-place, per-control reaction that touches nothing else: recompute a small derived table, re-bind a socket. Default no-op.
  2. affectsPrepare(controlName): a gate, default false. A module returns true only for controls that change the size or shape of its derived state (and thus may ripple to other modules); for controls that just tweak a value in place it stays false. When true, the framework runs the tree-wide rebuild; when false, it doesn't.
  3. prepare(): the module (re)builds its derived state (buffers, tables) for the current control values. Reached via Scheduler::prepareTree(), the coordinator-driven sweep that walks every module's prepare.

Scheduler::prepareTree() fires from two triggers: a tier-2 gate returning true after a control change, and any tree mutation (HTTP add/delete/replace/move handlers all call it unconditionally, since a structural change is rare and unambiguously needs a rebuild). Both triggers funnel through the same sweep; each module's prepare is idempotent (e.g. an effect only reallocs when its grid count actually changed), so over-rebuilding is wasted work, not a correctness hazard.

quiesce() β€” the structural path's thread guard. A module may hand work to another thread (Drivers ticks its Driver children on a core-1 task, see Β§ Parallelism), which makes a structural mutation dangerous in a way a control change is not: addChild reallocates the child array a worker may be walking, and removeChild is followed by the caller's release() + deleteTree(), which frees the very module a worker may be inside tick() on. So MoonModule declares virtual void quiesce() (default no-op) and core calls it on the parent before every child-array mutation (addChild / removeChild / replaceChildAt); a module owning a worker overrides it to park that worker. The control path already funnels through applyState()/prepareTree(), where the owner quiesces itself β€” this is the same rule extended to the sibling (structural) path, and it lives in core so no HTTP handler has to remember it (CLAUDE.md Β§ when core already owns a mechanism for one path, extend it to the sibling path). Deleting a driver from the UI mid-encode is therefore safe by construction, not by handler discipline.

This is the recognised layout/prepare-pass pattern (JUCE prepareToPlay, UIKit layoutSubviews, gated by per-object metadata like WPF's AffectsMeasure, here affectsPrepare); the pull-and-prepare-pass-not-pub/sub decision is ADR-0011. The light domain consumes it for the mapping rebuild (Β§ Mapping and blending); the mechanism itself is core.

Live reconfiguration: every change applies without a reboot

A property that falls out of the three tiers, and sets projectMM apart from most LED-controller firmware (where changing a pin map, strand length, or protocol means a reboot): every MoonModule reconfigures live the instant a control changes β€” no configuration change needs a restart. A pin, leds-per-pin, protocol, or mic-rate edit flows control-write β†’ onControlChanged (tier 1) and, when it changes shape, β†’ prepare() (tier 3), which rebuilds exactly the derived state that changed (an LED driver re-targets its RMT/DMA onto the new GPIOs, an audio module re-inits IΒ²S, an effect re-sizes, the Layer rebuilds its LUT); the render loop reads it next tick. This holds for every module type because the rebuild chain is core, and it composes with the robustness rule: any change, any order, keeps the device running. Only a firmware OTA flash needs a power cycle, the same physical boundary the robustness rule draws.

If a module needs to actively notify a specific other module of an event (rather than publish data for polling, or change its own controls), the pattern is a direct method call from the producer to a known consumer: ImprovProvisioningModule::tick1s calls networkModule_->setWifiCredentials(...) when credentials arrive over UART. No event bus; the producer holds a pointer to the consumer set at wiring time (main.cpp). Pub/sub becomes the right pattern only when there are multiple unknown subscribers per event; projectMM has none today.

Robustness

A running device must tolerate any sequence of UI actions or API calls (add, delete, replace, move, or reconfigure any module in any order, at any grid size) and keep running. Degraded or idle is an acceptable outcome; a crash, a hang, or a boot loop is not. This is a defining strongpoint: the device is something an end user can poke at freely without bricking it.

The contract is bounded to what the software accepts as input. Power loss, a malformed OTA image, a brown-out, or electrical faults are out of scope; the firmware can't intercept those. Everything that arrives through the HTTP API, the WebSocket, or the UI is in scope.

Why this needs stating as its own guarantee: the mutation-driven rebuild above (Β§ Event triggering) means a single API call can free and rebuild a large slice of the module tree mid-render. The hazard is stale references: a module holding a pointer to something that was just torn down. The two patterns that keep it safe:

  • Resolve links at prepare, don't cache them across mutations. A module that depends on another (a Drivers reading the active Layer, a Layer reading its Layouts) re-resolves that link from the tree at every rebuild rather than pinning a pointer once at wiring time. When the dependency is gone, the link resolves to null, not to freed memory.
  • Tolerate null at the point of use. Every consumer of a resolved link null-checks it and falls back to an idle state (no buffer, zero lights, nothing sent) rather than dereferencing. A driver with no Layer sends nothing; a Layer with no Layouts reports zero lights. Idle, not crashed.

The enforcement is the test framework, not discipline alone (see the Hard Rule). When a sequence is found that crashes or wedges the device, the fix is incomplete until a test reproduces that sequence, so the same break can't return. Worked example: deleting the last Layer once left Drivers holding a dangling pointer to the freed Layer; PreviewDriver then read it and panicked (LoadProhibited), and because the tree persists, the device boot-looped. The fix made Drivers clear its drivers' Layer pointers to null when no Layer is active, and a regression test (unit_PreviewDriver, "tolerates the active Layer being deleted") drives a Layer delete + rebuild and asserts the driver ends up null, not dangling. The scenario layer adds the same coverage end-to-end: clear_children lets a scenario clear a container and rebuild its own pipeline from any starting tree, so the delete/rebuild path is exercised on real hardware, not just in unit tests.

Hot path discipline

The render loop (Scheduler::tick and everything it calls: every effect, modifier, driver, layout) is the hot path. It runs roughly 50–10000 times per second depending on light count and CPU performance. Code there obeys three rules:

  • No heap allocations. new, malloc, push_back, std::string constructors, make_unique, make_shared: none of them on the hot path. Heap fragmentation on a long-running ESP32 kills throughput in minutes. Allocate everything during setup() / prepare(); the loop only reads and writes pre-sized buffers.
  • No blocking. No delay, no sleep, no mutex.lock(). If a mutex is unavoidable, use try_lock and skip the work this tick. Blocking the render task means a visible glitch on the LEDs.
  • Integer math preferred over float in per-light work. ESP32's FPU is single-precision and not as cheap as integer ALU; per-light float compounds fast. Use fixed-point or scaled integer math where the visual difference doesn't justify the cost.

Memory layout is the corollary: allocate buffers as single contiguous blocks outside the hot path. Never allocate many small scattered objects in a loop; fragmentation catches up even off-path. On ESP32 with PSRAM, use heap_caps_malloc(..., MALLOC_CAP_SPIRAM) for large buffers; the platform::alloc wrapper does this automatically.

Network input follows the same discipline: process synchronously at a defined point in the frame loop. Async input with staging buffers is allowed when memory is plentiful (desktop, PSRAM-rich ESP32), but the default is synchronous to keep the loop's worst case predictable.

Platform abstraction

Only abstract what you actually need. Currently:

  • Time: millis(), micros(). Monotonic, microsecond resolution. (esp_timer / std::chrono)
  • Memory: alloc(size), free(ptr). Prefers PSRAM on ESP32, falls back to regular heap. freeHeap(), maxAllocBlock() for diagnostics. (heap_caps_malloc / std::malloc)
  • Executable memory: allocExec(size) / freeExec(ptr, size) allocate memory the CPU can fetch and execute from, and writeExec(dst, src, len) copies emitted machine code into it safely. Used by the MoonLive live-script engine (below) to place the native code it compiles. All the W^X / instruction-cache quirks live behind these three functions: ESP32 IRAM via MALLOC_CAP_EXEC with 32-bit-aligned stores plus a cache sync so the core fetches fresh code; an mmap PROT_EXEC page on desktop (macOS-arm64 MAP_JIT + a write-protect toggle). (heap_caps_malloc(MALLOC_CAP_EXEC) / mmap)
  • Networking: UdpSocket for ArtNet send. TcpConnection / TcpServer for HTTP + WebSocket; TcpConnection::writeSome is a non-blocking partial write (returns bytes written, 0 = would-block) so a backpressured browser can't stall the render loop. (lwIP sockets / BSD sockets)
  • Scheduling: yield() (cooperative yield to OS/RTOS), delayMs(ms) (blocking sleep, off-path only), delayUs(us) (microsecond busy-wait, only for sub-millisecond hardware timing a driver owns β€” e.g. the WS2812 β‰₯300 Β΅s inter-frame latch in RmtLedDriver; never for general pacing, which uses the non-blocking millis() gate), reboot(). (vTaskDelay / esp_rom_delay_us / esp_restart on ESP32; std::this_thread::sleep_for / std::exit on desktop)
  • Platform config: platform_config.h per platform: compile-time constants like hasPsram and hasWiFi. Each platform provides its own version; types.h includes it without #ifdef. Core code branches on these via if constexpr (e.g. NetworkModule drops its WiFi cascade when hasWiFi is false), so the dead branch is removed from the binary with no #ifdef outside src/platform/.

Abstractions are added when a concrete implementation needs them, not pre-designed.

Platform boundary (hard rule). All #ifdef, #if defined, platform-specific #includes, and hardware API calls live exclusively in src/platform/. Everything outside src/platform/ compiles on every target without modification. Compile-time platform branching uses if constexpr on platform_config.h flags, never a preprocessor #ifdef. The boundary is enforced by moondeck/check/check_platform_boundary.py, a commit gate (see CLAUDE.md Β§ Lifecycle Events).

Firmware vs deviceModel vs board

Three distinct things, kept distinct in the vocabulary:

  • firmware β€” the compiled binary (chip target + which radios/peripherals are built in).
  • deviceModel β€” the whole assembled product, identified by its catalog name (Olimex ESP32-Gateway Rev G). This is which hardware this is. It is distinct from deviceName, which individual unit this is (per-unit identity the user sets β€” see Β§ Device name); a device (the umbrella term) has a deviceName and a deviceModel.
  • board β€” the bare PCB only. The word survives in its literal sense: on-board LED, on-board peripherals, board-soldered pins β€” things physically on the PCB. (A deviceModel is a board plus whatever is wired onto it.)

Firmware is the compiled binary: chip target plus which radios/peripherals/sdkconfig fragments are included. Today's variants: esp32 (classic, WiFi and RMII Ethernet in one binary β€” Ethernet comes up only when a PHY is present, pins/PHY per deviceModel), esp32-eth (classic, Ethernet only, WiFi excluded), esp32-16mb (classic with 16 MB flash, WiFi + Ethernet), esp32s3-n16r8 / esp32s3-n8r8 (S3 with WiFi + W5500 SPI Ethernet), esp32p4-eth (Waveshare ESP32-P4-NANO, Ethernet only), esp32p4-eth-wifi (the same P4 hardware with WiFi via its on-board ESP32-C6 over esp_hosted). Each chip's firmware carries the Ethernet driver(s) it can host (RMII EMAC for classic/P4, W5500 SPI for S3); which PHY/pins a deviceModel uses is runtime config. Selected by build_esp32.py --firmware <key>, reported by SystemModule.firmware, used as the contract target key in scenarios.

deviceModel is the physical hardware: chip + PCB + on-board peripherals (PHY, USB-serial, PSRAM, antenna), identified by its product name. Examples: Olimex ESP32-Gateway Rev G, LOLIN D32, Generic ESP32 Dev. A unit cannot identify its own deviceModel (no readable PCB ID on classic ESP32), so MoonDeck deduces it from the firmware where unambiguous (esp32-eth* β‡’ Olimex) and otherwise lets the user pick. It is stored on the unit as SystemModule's deviceModel Text control (display-only in the UI; HTTP /api/control writes still apply). MoonDeck mirrors the picked / deduced value to the unit via POST /api/control after each discover and after every dropdown change. The catalog of valid deviceModels lives at web-installer/deviceModels.json, shared between MoonDeck and the web installer: MoonDeck reads it for its dropdown and HTTP push (plain REST on the LAN); the web installer reads it for its picker and pushes the whole entry β€” deviceModel plus every module/control β€” over serial during provisioning as REST ops ("Improv = REST over serial", the APPLY_OP vendor RPC; see ImprovProvisioningModule.md). Pushing over serial sidesteps the mixed-content block that stops an HTTPS installer page from POSTing to an http:// device; an already-running device is re-configured via MoonDeck on the LAN.

A deviceModel can run multiple firmwares (the Olimex Gateway runs both esp32-eth and the default esp32); a firmware can run on multiple deviceModels (esp32 runs on any classic ESP32 dev kit). The esp32s3-n16r8 firmware is S3-only and does not run on the Olimex Gateway or other classic-ESP32 hardware. The codebase reserves "deviceModel" exclusively for the physical product and "firmware" exclusively for the compiled binary.

Config provenance: MCU β†’ deviceModel

Firmware-vs-deviceModel is a two-level model for where a pin or setting default legitimately comes from. The installer and MoonDeck use it so a user picks their hardware instead of hand-typing every GPIO. A default belongs at the level that actually fixes it:

  • MCU β†’ firmware. The chip (classic / S3 / P4) and the compiled binary. Fixes silicon- and build-wired facts: native-radio presence, PSRAM, and which Ethernet driver is compiled in β€” RMII EMAC (classic/P4) vs W5500 SPI (S3), i.e. hasEthernet and the driver kind. These are the compile-time hasI2sMic / hasWiFi / hasEthernet constants in platform_config.h; the firmware variant is the MCU choice. The firmware also ships a per-chip default eth pin seed (platform::ethConfigDefault) β€” a fallback so an un-configured unit at least attempts a sensible map β€” but that is only a seed, not the truth for any specific product (see below).
  • deviceModel β†’ the assembled product. Everything physical about a specific product, overriding the firmware seed where the product differs. The actual Ethernet PHY pin map + PHY type + MDC/MDIO/clock for this product (the catalog entry pushes them via setEthConfig, replacing ethConfigDefault β€” e.g. the Olimex Gateway's ethType:1, ethRstGpio:5, ethClockGpio:17 are Olimex-specific, not the generic-classic seed), plus C6 SDIO pins, button pins, the on-board status LED, and whatever else is wired on the product (a mic, LED strands, a loopback jumper). One catalog entry per deviceModel captures all of it.

So the Ethernet pins live at both levels, and that's not a contradiction: the firmware seeds a per-chip default, the deviceModel fixes the real map. The driver (which Ethernet stack) is firmware-only; the pin map is firmware-seeded but deviceModel-authoritative.

The deviceModel is one level β€” there is no separate per-unit provenance level. Whether a control is PCB-fixed or user-wired is not a taxonomy the code tracks; it falls out of what the catalog entry lists. A bare dev kit lists few controls (the user wires the rest, so those stay unset); a finished product lists more (its wiring is fixed). Same kind of entry, different completeness, no kind: flag.

The governing rule β€” "default only where the hardware actually fixes it" β€” is the Defaults rule applied to pin provenance: an entry defaults a control by including it and leaves a user-wired control unset by omitting it, so the data carries the rule with no level-tagging. It covers settings, not just pins: txPowerSetting is set per-entry because whether a rig sustains full-power WiFi TX is a brownout property of the assembly and its power supply, not the chip (the catalog pins Network.txPowerSetting: 8 for the ESP32-S3 N16R8 Dev, which browns out at full power on typical USB). The catalog is web-installer/deviceModels.json (schema in the installer README).

Services

A service is a MoonModule (role ModuleRole::Service) that bridges to the outside world (hardware or network) independently of the light pipeline. Examples: a gyro/IMU over IΒ²C, a microphone over IΒ²S, a relay or GPIO toggled out, a status push to Home Assistant. Services are domain-neutral and live in core; the platform transport they use (IΒ²C, UART, GPIO) is itself a domain-neutral platform primitive.

"Service" here means a user-added capability bridge, not the ESP32's own on-chip peripherals (LCD_CAM, SPI, PARLIO, RMT). Those on-chip blocks are how drivers clock data out to LEDs, reached through the platform layer.

The defining line is the data relationship, not the connector: does the module consume the light output buffer? If yes it's a driver (ArtNet, DMX, SPI-LED all consume the buffer, differing only in transport; a DMX sender uses a UART/RS-485 transport but is a driver because it sends the rendered buffer). If no, it's a service.

Services are user-add/deletable children of the Services container β€” the core-domain twin of the light pipeline's Layers/Drivers: a top-level container holding user-added children of one role. The firmware is identical whether or not the hardware is wired, so the user adds the module when they solder a gyro on and removes it later, reusing the generic child add/replace/delete + persistence machinery (Services declares acceptsChildRoles("service")). Fixed device infrastructure (identity, network, the inspection tools Tasks/I2cScan) lives under System instead, wired by code, not user-added β€” that is the System/Services split. Direction is per-module, not a role: a service may read (gyro), write (relay), or both, so one Service role spans the category. Each is a header-only or .h+.cpp core module under src/core/, reaches hardware only through a domain-neutral platform primitive (platform::i2c*, platform::audioMic*, …), and gets a spec in docs/moonmodules/core/services.md (enforced by check_specs.py). Most poll in tick20ms/tick1s; the exception is a service whose data an effect consumes every frame: AudioService reads + analyses its IΒ²S microphone in tick() because the audio effects react per render tick, and its per-tick cost (one FFT) is part of the render budget. Automatic bus-probe detection is out of scope; the manual path is the foundation.

An effect reads a service's data via the shared-struct pull pattern from Β§ Data exchange, no new mechanism: the service owns a small POD struct overwritten in place each poll/tick, and the consuming effect holds a const pointer to it. The first concrete case is audio: AudioService produces an AudioFrame (level + 16-band spectrum + peak) that AudioVolumeEffect and AudioSpectrumEffect consume. It reaches the frame through a static AudioService::latestFrame() rather than a boot-time setter, a small variation on the pattern, because an audio effect can be added through the UI after boot and must still find the one live mic (a setter only wired the boot instance). The active mic registers itself in setup() and clears the pointer in release(), so add/remove in any order returns either the live frame or a static silent one, never null. A service that only displays its readings (the gyro today) skips the consumer side entirely.

Multi-device runtime

Two domain-neutral services let several controllers act as one installation. They're core because nothing about them is light-specific; any domain spanning multiple devices uses the same two.

  • Discovery: devices find each other via mDNS. NetworkModule advertises each device today; this is live.
  • 🚧 Clock sync: one leader broadcasts its elapsed time (millis); followers compute their offset, targeting sub-millisecond accuracy. A shared monotonic clock is the foundation any cross-device coordination builds on. The committed design; not yet wired.

What the synced clock is for is a domain question; the light domain's use of it (synced animation across a wall) is in Β§ Multi-device sync.

Device name: one identity, every network name derives from it

A device has one network name, deviceName, and every name the device presents on the network is that exact string: the mDNS hostname (<deviceName>.local), the SoftAP SSID (the captive-portal network shown when unprovisioned), and the DHCP hostname (what the router's client list shows). They are not three settings that happen to match β€” there is a single source and the others read it, so a device shows one identity everywhere and the three can never drift apart.

  • Sole owner: SystemModule. deviceName is a control on SystemModule (default MM-XXXX from the MAC). It is the only place the name is stored or edited. Every consumer reads SystemModule::deviceName(); no other module holds a name of its own. NetworkModule reads it for the mDNS / AP / DHCP names; main.cpp reads it for the MM_DEVICE=<deviceName>.local boot-serial token the web installer uses to offer a clickable .local link. So to know what name a device advertises, you read one accessor β€” you never inspect NetworkModule or the platform to discover it.
  • Always a valid hostname. Because all three uses are DNS/SSID names, deviceName must satisfy the RFC-1123 label rules ([A-Za-z0-9-], no spaces, no leading/trailing hyphen). SystemModule enforces this at the source: it runs mm::sanitizeHostname() (in core/Control.h) on the value in setup() and every tick1s(), coercing whatever the user typed or persistence restored ("My Living Room!" β†’ "My-Living-Room") and falling back to the MAC-derived MM-XXXX if the result is empty. Sanitising at the owner means every consumer is correct for free β€” no per-consumer validation, no chance a raw name reaches mDNS. (unit_sanitizeHostname pins the rule.)
  • Follows a live rename. Renaming the device re-advertises immediately, no reboot β€” the live-reconfiguration rule applied to identity. NetworkModule::syncMdns() (called each tick1s()) compares the current name to the last-registered one and re-registers mDNS when it changed, so <new-name>.local resolves within a tick.

A machine-facing identity that an external system binds to is never the editable name. An MQTT topic prefix, a Home Assistant discovery unique_id, an API key path: anything a foreign system keys off must derive from an immutable hardware id (MAC / chip-id, e.g. projectMM/<last6-of-MAC>), because a live deviceName rename would silently repoint every topic and orphan the peer's config. The human-readable name rides a separate, published-but-non-identifying field (WLED, Tasmota, ESPHome, and HA discovery all anchor identity this way). deviceName above is the network-presentation identity (mDNS / AP / DHCP, where the name is the address); an external-integration identity is the opposite case and stays decoupled from it.

Light domain

The light domain is everything specific to driving lights. Light here means any controllable light source: an addressable LED pixel (WS2812, APA102), a DMX fixture (RGB par, moving head, dimmer), or any other output that takes colour/intensity data. The term is used instead of "pixel" because the system controls both LEDs and conventional lighting fixtures.

The pipeline

Modules in the light pipeline can be added, replaced, or removed dynamically at runtime.

              Layouts (shared by every Layer in Layers)
                β”œβ”€β”€ GridLayout  ──→ coordinate iterator
                └── WheelLayout ──→ coordinate iterator
                        β”‚
                    Layers
                β”Œβ”€β”€β”€β”€β”€β”€β”€β”Όβ”€β”€β”€β”€β”€β”€β”€β”
                β–Ό       β–Ό       β–Ό
            Layer A  Layer B  Layer C
          Effect(s) Effect(s) Effect(s)
        Modifier(s) Modifier(s) Modifier(s)
        Buffer(own) Buffer(own) Buffer(own)
            LUT(own) LUT(own) LUT(own)
                β”‚       β”‚       β”‚
                └── Blend+Map β”€β”€β”˜
                        β”‚
                    Drivers          (owns Correction: brightness + lightPreset)
                β”œβ”€β”€ WS2812Driver  ─ apply Correction ─→ DMA buffer
                β”œβ”€β”€ ArtNetDriver  ─ apply Correction ─→ UDP packets
                └── PreviewDriver (raw buffer, no Correction) ─→ WebSocket

Data flow. The pipeline instantiates both core data-exchange shapes (see Β§ Data exchange between modules):

  • Shared-struct (pull): Drivers hands every child driver a Buffer* (source) plus a Correction* (shared brightness/reorder/white), and Layer exposes its pixel buffer to Drivers directly on the identity-mapping fast path: each consumer holds a const-pointer and reads it per frame. The pointers are (re)bound on every rebuild, not just at boot: Drivers::prepare() re-resolves the active Layer (Layers::activeLayer()) and calls passBufferToDrivers(), which re-runs setSourceBuffer()/setLayer() on each child (clearing them to nullptr when there is no active Layer). So a held pointer is valid only until the next rebuild β€” which is exactly why the consumers re-read it each frame and tolerate a null (the robustness rule): a Layer add/delete/replace re-binds or clears it live, no dangling reference.
  • Push to a core sink: PreviewDriver owns the preview wire format (a one-time coordinate table + per-frame RGB point list) and pushes the bytes to a BinaryBroadcaster (the core HTTP server). The server broadcasts them over WebSocket without knowing they're a preview: the format and the light types stay entirely in the driver. See PreviewDriver.

Graceful degradation under transport backpressure. The preview is the transport-side sibling of the memory-side Β§ Degradation cascade: when the browser can't keep up with a full-resolution frame (128Β² = ~49 KB), the producer sheds quality rather than stall the loop, in video-streaming order, frame rate then resolution. The frame streams from the driver buffer with no intermediate copy, a resumable memory-adaptive chunk per tick, and the next frame starts only once the previous drained, so the effective frame rate self-limits to what the link sustains. Only when a single frame can't drain promptly does it downsample via a spatial lattice (the adaptive-bitrate idea behind HLS/DASH, on a binary WebSocket). Each delivered frame is whole (a WebSocket message is atomic), the render loop is charged a bounded slice per tick, and a client blocked past the spin budget is closed and reconnects (a blip, not a freeze). The mechanism is payload-agnostic and lives in PreviewDriver + HttpServerModule, so other bulky streams can ride the same transport.

Naming convention. Capital Layouts, Layers, Drivers are class names (always capitalised when referring to the class). Lowercase "layouts", "layers", "drivers" is the English plural, used freely when context makes it clear. Singular "layout", "layer", "driver" is an individual instance.

3D from the start

The system is natively 3D. Coordinates, effects, layouts, and mappings all operate in 3D space (x, y, z). 2D and 1D are simply the case where one or two dimensions have size 1. There is no separate 2D mode; everything is 3D, and lower dimensions fall out naturally.

Two numeric typedefs keep memory tight in LUT tables:

  • nrOfLightsType: total light count, light indices, LUT destinations, width * height * depth products. uint16_t on devices without PSRAM (max 65 K), uint32_t with PSRAM (supports large hub75 panels). Selected at compile time via platform_config.h.
  • lengthType: coordinates and dimensions. Always int16_t (max 32767 per axis, supports negatives for out-of-bounds effects).

For 12 K LEDs with a 1:1 LUT, the smaller nrOfLightsType on no-PSRAM devices saves 24 KB. All code uses the typedefs consistently to avoid casting.

Layouts and Layout

Layouts (a MoonModule) is the top-level container for one or more layouts, defining the physical topology of the installation. It is shared by every layer: there is one Layouts describing the physical setup, and every layer renders into it. When a layout changes, every layer rebuilds its LUT.

A layout (a LayoutBase MoonModule, child of Layouts) defines the physical positions of lights in 3D space. It is a coordinate iterator: it yields (physicalIndex, x, y, z) for each light it defines. A layout does not own or build any mapping LUT.

Layouts cover both addressable LEDs and DMX fixtures. An LED-strip layout yields one coordinate per LED; a DMX-fixture layout yields one coordinate per fixture (a moving head is one point in 3D space).

Positions are computed algorithmically, not stored. Grid is the most commonly used layout, but any geometry works: spheres, rings, cones, spirals, arbitrary point clouds. Grid is full-density (every position maps to a light); a wheel is sparse (only spoke positions are mapped, gaps are unmapped).

Multiple layouts can live in one Layouts container. Each layout describes one light type: the model is one light type per layout (LED strips, or par lights), not mixed in a single Layouts.

Layers and Layer

Layers (a MoonModule) is the top-level container for one or more layers. Each layer renders independently into its own buffer; the Drivers container composes those buffers downstream.

Multi-layer composition. The container composes more than one Layer's buffer into the shared output: each enabled Layer renders into its own buffer, and the Drivers container's blend+map step composites them in container order (bottomβ†’top) into the physical buffer (which is why that buffer is a blend buffer in Β§ Memory strategy). Each Layer carries a blendMode (alpha-over or additive) and an opacity β€” inert parameters the Layer never acts on; Drivers reads them and the container child order, and blends bottomβ†’top. The bottom layer clears + overwrites the output; each layer above blends onto the accumulated frame per its mode and opacity. With a single enabled Layer this is the degenerate case: a thin pass-through that hands the driver the Layer's buffer directly (no composite), byte-for-byte the single-layer pipeline. The blend math is integer-only per the hot-path rule (8-bit alpha-over (srcΒ·Ξ± + dstΒ·(255βˆ’Ξ±))/255, additive sum-with-clamp); cost scales with the enabled-layer count.

A Layer (a MoonModule, child of Layers) owns:

  • A buffer: the light data effects write into (logical space).
  • A mapping LUT: built by the layer from the shared Layouts and the layer's static modifiers.
  • Effects (ordered list): write light values into the buffer.
  • Modifiers (ordered list): transform the LUT or light values.

A layer can have multiple effects. Each effect writes to the buffer sequentially in its listed order, overwriting or adding to the previous β€” so the effects stack (a base-colour effect followed by a sparkle effect).

A layer applies all its enabled modifiers as a chain during the mapping build (Layer::rebuildLUT): each modifier is a coordinate fold, and they compose in child order (Mβ‚βˆ˜Mβ‚‚βˆ˜β€¦). Modifiers are reorderable in the UI, and order is meaningful (a multiply-then-checkerboard mask differs from checkerboard-then-multiply, just as mirror-then-rotate differs from rotate-then-mirror). The fold contract (the three hooks, the physicalβ†’logical build, the live pass) is documented in ModifierBase.

Each layer references the shared Layouts. The layer builds its mapping by walking the Layouts container's physical coordinates and folding each through the static modifier chain to its logical cell β€” N physical lights folding onto one logical cell is the fan-out (a Multiply kaleidoscope), so the build never produces a fan-out overflow. Different layers in Layers can have different modifiers, producing different mappings from the same Layouts.

Effects

Effects produce light colours. They write into the Layer's buffer, which represents a logical grid. The Layer determines the buffer's dimensions (width, height, depth) from the Layouts and its modifiers. Effects receive these logical dimensions and elapsed time (millis) as their rendering context. They compute light positions from the buffer index (e.g. x = i % width, y = i / width).

Effects use elapsed time for animation, not frame count. Animation speed becomes frame-rate independent: an effect looks the same at 30 fps and 60 fps. This is also what makes the 🚧 cross-device clock sync work: a shared elapsed-time base means synced visuals across controllers (see § Multi-device sync).

Effects know nothing about hardware, protocols, physical LED layout, or mapping. They only see the logical grid the layer provides.

Speed convention. Effects with a speed control use BPM (beats per minute). uint8_t, default 60 (= 1 beat per second). Human-readable, musically meaningful, DMX-compatible. The effect converts BPM to animation rate internally using elapsed millis.

Buffer persistence β€” the layer does not clear each frame

The Layer's buffer persists frame to frame: Layer::tick() does not clear it before running effects (the decision, and why not clear-each-frame, is ADR-0003). It is zeroed once on allocation/resize, and once more in Layer::prepare() after rebuildLUT(), so a rebuild starts from black and persistence then holds between frames. Each effect owns its background:

  • A full-grid effect (Plasma, Rainbow, Fire, Noise) writes every pixel each frame.
  • A trail effect calls layer()->fadeToBlackBy(amt) to decay the previous frame, so a comet leaves a fading tail.
  • A read-prior effect (FreqMatrix scroll, Game-of-Life, a blur) reads last frame's pixels via draw::get / draw::blur; the persistence is its state.
  • A sparse effect that wants a clean frame calls draw::fill(buf, {0,0,0}) itself (e.g. RubiksCube).

Fade is a Layer operation: effects register an amount, the Layer keeps the MIN across them and applies one whole-buffer pass at the next frame's start, so N fading effects cost one pass, not N, and never darken each other's fresh pixels.

Dimensionality

Every effect declares its native dimensionality through EffectBase::dimensions(), returning Dim::D1, Dim::D2, or Dim::D3 (default: "I iterate every axis the layer gives me"). The Layer uses this to extrude lower-dimensional output across the unused axes after each effect's tick():

  • D1: the effect writes only the column at (x=0, z=0) β€” 1D runs along Y. Layer copies that column across every other x in z=0, then copies z=0 across every z.
  • D2: the effect writes only the z=0 slice (the front (x, y) face). Layer copies z=0 across every z.
  • D3: the effect writes every axis itself. Extrude is a one-comparison no-op.

D1/D2 are opt-in promises: declaring them tells the framework it can fill the missing axes, saving the per-effect work of iterating z (or x and z). Effects that don't make that promise stay at the D3 default and iterate the whole buffer.

Why 1D runs along Y, and the unified expand rule. A lower-D effect occupies the low axes and the framework expands across the next: 1D β†’ 2D adds columns across X, 2D β†’ 3D adds slices across Z. 1D-along-Y (shared with MoonLight) makes a 1D effect the natural first column of its 2D form, so expanding to a panel is just "repeat the column," same math (1D-along-X would make it a row expanding downward, a worse fit since a strip is a column). A 1D effect therefore renders correctly on a 1 Γ— N grid (width 1, height N), but on N Γ— 1 the extrude runs the wrong way and flattens it. How a physical output (a strip, a row of Hue lights) maps to 1 Γ— N is a layout concern.

Hot-path cost: extrude pays one comparison and returns for the D3 case. For D1/D2 on a layer whose unused axes are size 1 (a D2 effect on a 2D layer, a D1 effect on a 1D 1 Γ— N layer) the inner loops are guarded by depth_ > 1 / width_ > 1 and never run. Real memcpy work happens only for a D1 or D2 effect on a layer with more dimensions than the effect writes: exactly the case where you wanted the framework to do the duplication.

Each effect's dimensions() is a claim about which axes its loop iterates, not which axes its math could in principle vary along. A "D2 fire" can in future be promoted to D3 by adding z-aware heat propagation; until then declaring it D2 honestly describes what the loop does today.

The dim int is also emitted in /api/types so the UI derives the dimensional emoji (πŸ“/🟦/🧊) per module; modules don't put dimensional emoji in their own tags() strings.

Robustness rules

Effects must run at every grid size. Modifiers can shrink the logical grid to any size including 0Γ—0Γ—0 (e.g. every layout child is disabled). An effect's tick() must produce a correct result for any (width, height, depth): no crashes, no divide-by-zero, no out-of-bounds writes. On a zero grid the loop is a clean no-op. Effects either gate at the top (if (w <= 0 || h <= 0) return;) or write their loops so an empty range is naturally a no-op (for (y = 0; y < h; ...)).

Effects must animate at every tick rate. Per-tick phase math computed as dt * bpm * K / 60000 truncates to 0 on devices where dt < 234/bpm ms: desktop ticks every 0–1 ms, so even bpm=60 freezes. The fix is to keep the raw dt * bpm numerator in the phase accumulator and divide only at the read site:

phase_num_ += static_cast<uint64_t>(dt) * bpm;
uint8_t t = static_cast<uint8_t>((phase_num_ * 256) / 60000);

See NoiseEffect / MetaballsEffect for the canonical pattern. Animation speed must depend only on bpm and wallclock, not on tick rate or grid size.

An effect renders a pattern; it does not transform geometry. When migrating or adding an effect, strip out anything that is really a modifier β€” mirroring, tiling, rotation, scrolling/offset, a kaleidoscope fold, masking, any remap of where pixels land β€” and add it as a separate modifier instead. WLED (and other sources we port from) routinely fold these into the effect's own loop (a "mirror" checkbox, a "2D" rotation, a built-in pinwheel), because WLED has no modifier concept; we do. Keeping them out of the effect is what lets any effect compose with any modifier (the same RotateModifier rotates Fire, Noise, or a network-received frame) instead of every effect re-implementing its own half-baked mirror. The test: an effect's tick() should only write colours into the logical buffer for its own coordinates; if it's reading or rewriting positions to move/fold/duplicate the image, that behaviour belongs in a modifier. (This is the light-domain face of Complexity lives in core; domain modules stay simple β€” geometry transforms are the modifier's job, shared once, not duplicated into every effect.)

MoonLive: the live-script engine

MoonLive lets you author an effect (later: a layout, modifier, driver, or core rule) as text and run it on a running device, with no recompile-and-flash cycle. Its standout property is how it runs the script: not a bytecode interpreter, but a native-codegen compiler β€” source text is lexed, parsed, lowered to a typed IR, and assembled to real machine code that the render loop calls through a plain function pointer, so a scripted effect runs at near-hand-written speed in the hot path. This is the core construct; a scripted effect (MoonLiveEffect) is the thin binding that gives it the MoonModule lifecycle.

The engine is a domain-neutral core with one narrow seam, structured as three tiers so adding a CPU is additive, never a rewrite:

  • Front-end (src/core/moonlive/, platform-independent): a recursive-descent lexer + parser over an expression grammar (every function argument is a literal or a nested call) that lowers each statement to a typed IR β€” a flat list of three-address ops over virtual registers. The IR is the seam: it knows operations, never an ISA and never a domain. It is compile-time only β€” consumed during lowering and discarded, so it costs nothing at run time; the CPU executes only the final native instructions.
  • Host builtin table (the domain seam): the core owns no function names. A host registers {name β†’ descriptor} β€” setRGB/fill/random16 for LEDs (src/light/moonlive/), something else for a display or sensor. A descriptor is either a Call (a generic call to a host C function pointer β€” a pure helper like random16) or an Inline op (a neutral opcode tag the backend emits inline β€” a buffer writer, no per-pixel call). This is the ESPLiveScript / ARTI bound-function model; it is what keeps the core LED-free while the hot path stays inline. The LED names and the "an element is 3 RGB bytes" meaning live only in the light-domain registration and the per-ISA lowering, never in core.
  • Per-ISA backend (src/platform/, behind the boundary): a tiny named-instruction MacroAssembler (the textbook V8 / LLVM / asmjit shape β€” append one instruction, back-patch label offsets) plus the IRβ†’bytes lowering that drives it. Xtensa (classic ESP32 / S3), RISC-V (P4), and the host ISA (desktop arm64/x86-64) each are a new backend file behind the unchanged IR β€” the front-end and IR never branch on ISA. Emitted code goes into an allocExec block (see Β§ Platform abstraction) and is called each tick.

A recompile is the normal cold-path rebuild: editing the source control routes through the same prepare() sweep every control change uses, so a new script swaps in live (no reboot), and a parse error surfaces in the module status while the layer renders dark β€” robust to any input. The module contract is MoonLiveEffect.

Modifiers

A modifier (MoonModule) lives inside a layer alongside its effects. Modifiers expose a virtual interface: the Layer calls modifier methods without knowing the concrete type (no dynamic_cast). A layer applies all its enabled modifiers as a chain, in child order β€” each a coordinate fold composed into one mapping (see Β§ Layers and Layer).

A modifier is a coordinate transform, applied in one of two ways (the fold contract is in ModifierBase):

  • Static (modifyLogicalSize + modifyLogical): folded into the mapping during the cold-path build, so it costs nothing per frame (Region crop, Multiply tile/mirror, a mask).
  • Live (modifyLive): a per-frame coordinate remap for animation (rotation), run only when an enabled modifier needs it β€” a static-only chain pays nothing.

Dimensionality for modifiers defaults to Dim::D3 (assumed to work in all three axes unless declared otherwise). Unlike for effects, this is purely advisory: the Layer doesn't extrude modifier output. It exists so the UI can render the πŸ“/🟦/🧊 chip on the card. MultiplyModifier is D3 (it has independent multiplyX/Y/Z + mirrorX/Y/Z toggles).

Mapping and blending

The blend+map step walks each layer in turn: reads each logical light, uses that layer's LUT to find the physical position(s), blends the colour into the physical output buffer. This is where logical space meets physical space.

Each mapping LUT is a flat, contiguous lookup table allocated outside the hot path. It is built in Layer::prepare() and rebuilt whenever a Layout or Modifier control changes (the controls' affectsPrepare returns true) or a Modifier/Layout child is added/removed/replaced/moved; both triggers flow through the same core mechanism, see Β§ Event triggering between modules.

The LUT supports four mapping types:

  • 1:1 identical: logical index equals physical index. No table needed (hasLUT() returns false, setIdentity() mode). Grid without serpentine, no modifiers.
  • 1:1 shuffled: logical maps to one physical, but reordered. Table needed. Grid with serpentine.
  • 1:0 unmapped: logical light has no physical output. Table needed. Sparse layouts (wheel).
  • 1:N multimap: logical maps to multiple physical positions. Table needed (CSR format). Mirror / clone modifier.

Because mapping and blending happen in a single pass over each layer, there is no intermediate "mapped but unblended" buffer. The physical buffer is the only output-side allocation.

Drivers

Drivers (a MoonModule) is the top-level container for one or more drivers. It is the consumer side of the pipeline. The Drivers container owns a shared output buffer and performs blend+map from every layer's buffer into it each frame. Individual drivers then read from this buffer to push to hardware / network.

The shared output buffer is necessary when blend+map writes to arbitrary physical positions via the LUT: the output is not filled sequentially, so a driver cannot read chunk-by-chunk until the full buffer is populated. It is not needed for the single-layer, no-blend case (identity or serpentine-shuffle mapping): there a driver can fuse map + output correction + protocol encode into one pass straight into its own output (DMA buffer / packet), skipping the shared buffer.

Each driver (a MoonModule) speaks one protocol:

  • LED drivers: WS2812 via RMT (multi-pin), plus two parallel-output paths on the newer chips. The S3's LCD_CAM i80 bus (MultiPinLedDriver) drives exactly 8 data GPIOs β€” the i80 bus claims every data line of its width, so a partial set is rejected. The P4's Parlio peripheral (ParlioLedDriver) drives 1–8 lanes β€” it takes the data GPIOs directly, so any count up to 8 is valid. Both are DMA-driven. Platform-specific; all behind the platform boundary.
  • DMX / ArtNet: sends DMX over UDP. Supports addressable LEDs and conventional DMX fixtures (pars, moving heads, dimmers).
  • Preview: streams light data to the web UI via WebSocket.
  • Desktop output: SDL2 or terminal for visual preview. Desktop also serves as a high-speed processing node, driving lights via ArtNet/DDP over the network.

Each driver child reads from the Drivers container's output buffer. Everything before the Drivers container is platform-independent.

Output correction turns logical RGB into the physical signal: brightness scaling, channel reorder (RGB→GRB via a light preset), and white derivation for RGBW. The Drivers container owns the global brightness; each driver picks its own light preset (its preset control) and applies the correction per-light into its own buffer/packet, so two strips on one device can be wired differently. Preview is exempt (it shows the raw logical buffer). The brightness LUT rebuilds on the cheap onControlChanged tier (§ Event triggering), so the slider stays fluent.

Network-based drivers (ArtNet, E1.31, DDP) pace their output with a non-blocking elapsed-time gate, never a blocking wait (no delay/vTaskDelay β€” that would stall the single-threaded tick, the hot-path rule). The gate is the lastSendTime/millis() pattern: if (now βˆ’ lastSendTime < interval) return; early-exits the tick so every other module's loop keeps running, exactly how FPS limiting works (NetworkSendDriver, fps control). Frame-rate pacing is required and implemented this way. Inter-packet pacing (spacing the universes within one frame) uses the same non-blocking gate if a receiver drops packets under a burst β€” it is not needed by default (the bench ArtNet matrix test runs clean bursting the universes), so it is added only when a target requires it, never as a busy-wait between packets.

Memory strategy

All buffers are allocated as single contiguous blocks outside the hot path, at startup or when configuration changes (LED count, layout size, layer count). They are then reused every frame with zero allocations in steady state. Measured per-module timing and memory for each platform: performance.md.

Pay for what you use

A module holds heap only for capabilities it is actually exercising, the same zero-overhead principle C++ applies to abstractions ("you don't pay for what you don't use"). Concretely, for every module:

  • A module not in the tree costs nothing. Modules are heap-allocated through MoonModule::operator new when added (via the factory or boot wiring), so a deviceModel that omits a module pays zero β€” not even its classSize(). This is the base case the rest of the rule extends inward.
  • A feature's buffer allocates on first use, not at setup(). When a module is present but a given capability is dormant (a driver with no output attached, an MQTT client with HA discovery toggled off), that capability's buffer is nullptr until the code path that needs it runs. Allocating eagerly at setup() for a path that may never execute is the anti-pattern this rule forbids β€” it charges every instance for the worst case.
  • The allocation frees in release() (and on the transition that makes the capability dormant again β€” a disable, a toggle-off), and is reported through dynamicBytes() so /api/system and the memory scenarios see the real ladder. MoonModule::release() reverse-recurses into children, so a subtree's memory unwinds bottom-up with no leak.

The result is a memory ladder that tracks configuration exactly: module-absent β†’ 0; module-present-but-feature-off β†’ just the class instance; feature-active β†’ +dynamicBytes(). The LED driver's output buffer and the MQTT module's discovery-config scratch are the worked examples; the rule governs every module. It matters most on a no-PSRAM ESP32, where the internal-heap reserve (HEAP_RESERVE) is the tightest constraint, so a buffer held but unused spends the reserve the render loop, WiFi, and HTTP depend on.

Buffer types

  • Layer buffers: one per active layer, holds the logical light data for one effect chain. Allocated in PSRAM when available. On memory-constrained devices, consumers may read from the layer buffer directly (no mapping, no blending, no physical buffer needed).
  • Physical buffer: when present, holds the blended+mapped output. It is a blend buffer, needed only for compositing (>1 layer, or any alpha/additive blend); it is not what provides producer/consumer parallelism. Under the 🚧 two-core handover, parallelism comes from the consumer's own working copy, the encoded DMA buffer for a clockless LED driver, or the kernel socket buffer for ArtNet, which decouples the producer (filling the next Layer frame) from the consumer (transmitting the previous one).
  • Mapping LUT: flat lookup table for logicalβ†’physical. Read-only during rendering. PSRAM is fine: sequential reads are cache-friendly.

All buffers are raw uint8_t* arrays sized channelsPerLight * nrOfLights. There is no pre-allocated per-channel array and no fixed channel layout: channelsPerLight is a runtime value (a uint8_t, so 1–255), so RGB (3), RGBW (4), and multi-channel DMX fixtures all use the same code path; the buffer simply gets wider. Channel layout is configured via offsets (see MoonLight's LightsHeader pattern).

Network input (ArtNet receive, WebSocket) is processed synchronously at a defined point in the frame loop. Zero extra buffers, no race conditions. The trade-off is up to one frame of latency (~16 ms at 60 fps), imperceptible for LEDs.

Adaptive allocation

The system checks available heap before each allocation and degrades gracefully when memory is insufficient (the allocate-on-demand-with-a-cascade decision, over fixed buffers, is ADR-0002). A minimum reserve (HEAP_RESERVE = 32 KB) is kept for stack, HTTP, WiFi, and overhead.

  • Mapping LUT is created only if all of: modifiers exist on the layer; layout is not a simple non-serpentine grid (where physical == logical); enough heap available after the reserve.
  • Driver output buffer (see Β§ Drivers for what it's for) is created only when the pipeline must write into physical space rather than hand a driver a layer's logical buffer directly β€” that is, when two or more layers are enabled (they must be composited into one buffer) or a layer has a mapping LUT actually allocated (logicalβ‰ physical) β€” and enough heap is available. A single enabled layer with no LUT needs no output buffer: drivers read its buffer directly (the zero-copy fast path).

Degradation cascade

Best to worst:

  1. Full pipeline: LUT + driver output buffer. Modifier applied, clean separation.
  2. Skip LUT + driver buffer: modifier not applied, forced 1:1 mapping. No intermediate buffers. (A LUT without a driver buffer to map into is useless; they're always skipped together.)
  3. Reduce layer dimensions: halve width/height until the buffer fits, minimum 8Γ—8.

Each degradation is observable via lutSkipped() and reported in /api/system per-module metrics.

Invariants

Non-negotiable:

  • Effects always write to their layer's logical buffer. Never to output, never to physical coordinates.
  • Drivers always own the output path (blending, mapping, brightness correction, channel reordering).
  • Layer buffer is mandatory: if it doesn't fit, reduce dimensions until it does ("at least see something").

Per-module reporting

Every MoonModule self-reports classSize() / dynamicBytes() / tickTimeUs() (a core base-class feature; see Β§ MoonModules). For the light pipeline specifically, memory scenarios use those numbers to verify that 1:1 pipelines allocate zero intermediate buffers and that the degradation cascade triggers at the right thresholds.

Scaling to available memory

Device Memory Typical capability
ESP32 + OPI PSRAM 2–8 MB Many layers, 10K+ LEDs
ESP32, no PSRAM ~320 KB internal Full pipeline: double buffering, mapping, blending, parallelism. Proven up to 16 K lights (128Γ—128 measured live on Olimex; see performance.md). The degraded path (single Layer, 1:1 direct, no blending) is reserved for installations that grow beyond what the full pipeline fits.
Teensy 4.x 1 MB internal, no PSRAM Comfortable headroom for several layers; excellent DMA-based LED output (OctoWS2811). Ethernet built-in on 4.1, optional on 4.0.
Desktop / RPi Abundant No constraints

The architecture does not assume PSRAM is present. Buffer counts and sizes are determined at runtime based on available memory and reallocated when configuration changes.

Multi-device sync

How lighting uses the core multi-device runtime (discovery + clock sync) to drive an installation spanning multiple controllers:

  • 🚧 Synced visuals from the shared clock. Effects animate off elapsed time (Β§ Effects), so feeding them the leader's synced clock instead of each device's local one makes a wall of controllers animate in lockstep, regardless of each one's frame rate. This is the light-domain payoff of the core clock sync.
  • 🚧 Light distribution: one device sending rendered light data to another uses the existing ArtNet / E1.31 / DDP standards (the ArtNet driver already sends to fixtures today; device-to-device distribution as a sync topology is the part not yet wired). No bespoke protocol.

Web UI

UI overview

The UI is a handful of hand-maintained files: index.html, app.js, style.css, plus two focused ES modules app.js imports (preview3d.js for the WebGL 3D preview, install-picker.js shared with the web installer). No frameworks, no build tools, no npm. Served directly by the embedded HTTP server.

The UI is MoonModule-driven. It contains no hard-coded knowledge of specific effects, layouts, or drivers. It queries the system for the current MoonModule tree (layers, effects, modifiers, layouts, drivers, each with their controls) and renders generically:

  • Each MoonModule shows as a card with its name and declared controls.
  • Controls are auto-rendered by type (slider, toggle, colour picker, text input, dropdown).
  • Modules can be switched (change which effect a layer uses) and linked (assign a layout to a layer).

Adding a new MoonModule with controls needs zero changes to the UI files. This extends to the tree-mutation affordances: which modules accept children (and of what role) comes from each type's acceptsChildRoles(), and whether a module can be deleted/replaced comes from its userEditable(): both declared on the C++ side and reported in /api/types + /api/state. The UI hardcodes no list of "which types are containers" or "which roles are editable"; a new container type or a fixed child is a one-line C++ override.

The light domain plugs into the UI at three points: a fixed top-level tree (Layouts / Layers / Drivers pinned in main.cpp, root reorder disabled while child reorder works via drag-and-drop), a binary WebSocket preview channel (PreviewDriver: a 0x03 coordinate table sent once per LUT rebuild plus per-frame 0x02 RGB point lists, so sparse layouts preview at their real positions), and per-role emoji for the chip filter (the ROLE_EMOJI map in app.js is the single source of truth: effect, driver, …, service). Full UI spec: docs/moonmodules/core/ui.md.

Tag emoji legend

A module's chips come from three sources, rendered identically on the card and the type picker: a role chip (UI-derived from role), a dimensional chip (UI-derived from dim), and the curated tags() string (a flash literal the module returns; the UI splits it into grapheme clusters, one chip each). Role and dim are not repeated in tags() β€” only the categories below are. The ROLE_EMOJI / DIM_EMOJI maps in app.js are the single source of truth for the UI-derived chips; the legend takes MoonLight's set as the canonical basis:

Category Emoji Meaning
Role (UI-derived) πŸ”₯ effect Β· πŸ’Ž modifier Β· πŸš₯ layout Β· ☸️ driver Β· πŸ›°οΈ service Β· πŸ₯ž layer Β· βš™οΈ generic what kind of module (from role, via ROLE_EMOJI)
Dimensionality (UI-derived) πŸ“ 1D Β· 🟦 2D Β· 🧊 3D native axes (from dim)
Origin / library (tags()) πŸ’« MoonLight Β· πŸ™ WLED Β· ⚑️ FastLED Β· (projectMM-native is the default origin β€” an origin emoji marks a module that came from elsewhere) which library the module came from; the migration files docs by this, the emoji filters by it
Creator (tags()) πŸ¦… a named contributor (credited at the introduction site) individual authorship credit
Audio (tags()) πŸ”Š audio-reactive reads AudioService::latestFrame()

tags() carries only origin + creator + audio (+ any genuinely module-specific marker); a module can carry several (e.g. πŸ’«πŸ¦… = MoonLight origin, a named creator). Role and dim are added by the UI, so a module never duplicates them in its string. When migrating, set each module's tags() from this legend so the chip set is consistent across the library.
