MultiplyModifier

Source: MultiplyModifier.h

MultiplyModifier¶

class MultiplyModifier

src/light/modifiers/MultiplyModifier.h:23

Inherits: ModifierBase

Modifier tiling the image across the box, optionally mirrored.

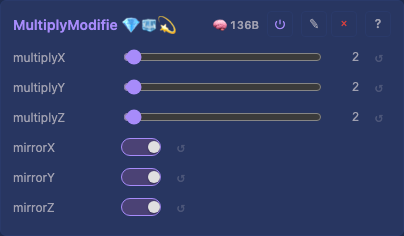

MultiplyModifier card

Public Attributes¶

uint8_t multiplyX = 2

uint8_t multiplyY = 2

uint8_t multiplyZ = 2

bool mirrorX = true

bool mirrorY = true

bool mirrorZ = true

Public Methods¶

virtual inline const char * tags() const override : Curated emoji tags for the module picker's chip filter — extras beyond the role chip (which the UI derives from role() on its own).

virtual inline Dim dimensions() const override : Advisory UI chip: what this modifier can work on (tiles on all three axes; on a 2D grid the z factor is simply 1).

virtual inline void defineControls() override : defineControls MUST be idempotent and pure: only controls_.clear() + controls_.addX().

virtual inline void modifyLogicalSize(Coord3D &) override : STATIC, build-time, once per rebuild in child order: fold the logical box.

virtual inline bool modifyLogical(Coord3D &) const override : STATIC, build-time, per physical light in child order: fold a coordinate into this stage's logical space (in place).
