MirrorModifier

Source: MirrorModifier.h

MirrorModifier¶

class MirrorModifier

src/light/modifiers/MirrorModifier.h:28

Inherits: ModifierBase

Modifier folding each box axis onto itself (mirror).

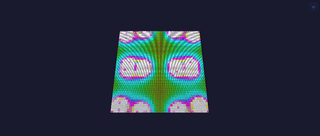

MirrorModifier card

Public Attributes¶

bool mirrorX = true

bool mirrorY = true

bool mirrorZ = true

Public Methods¶

virtual inline const char * tags() const override : Curated emoji tags for the module picker's chip filter — extras beyond the role chip (which the UI derives from role() on its own).

virtual inline Dim dimensions() const override : Advisory UI chip: what this modifier can work on (mirrorX/Y/Z: each axis is independently foldable).

virtual inline void defineControls() override : defineControls MUST be idempotent and pure: only controls_.clear() + controls_.addX().

virtual inline void modifyLogicalSize(Coord3D &) override : STATIC, build-time, once per rebuild in child order: fold the logical box.

virtual inline bool modifyLogical(Coord3D &) const override : STATIC, build-time, per physical light in child order: fold a coordinate into this stage's logical space (in place).
