The StadBeest: a multi-device installation

Meet the StadBeest, a creature made of what the city throws away. Its body is a chandelier on ten legs of light, its eyes sit in 3D-printed light bulbs, and its mouth is an ordinary WiFi lamp. It listens to the music around it, takes a step and looks around on every beat, and picks its own colors and moods through the night. A handful of small computers run it together on MoonLight, free lighting software made by volunteers.

What did you think of it? A few words are enough, and we read every one.

Leave us a message   Discord   Reddit

Curious how it is made, or want to build your own? Read on for the whole recipe, from the hardware to the code.

---

An installation is several MoonLight devices that act as one piece: one creature, one sculpture, one room. The worked example is the StadBeest, whose legs, eyes and mouth run on devices of their own. Each section names a choice that makes it work; borrow what fits your own piece.

Start simple. The StadBeest shows most of what MoonLight can do in one piece, so it can look overwhelmingly complex. An installation needs far less to act as one piece:

• One device, one effect, a layout sized to the part: a piece in itself.
• Two or three devices, each running its own effect, all hearing the same music: they move on one beat with no link between them.
• One of them leading over OSC: one slider or desk steers them all.

Start with the first, see it run, and add the next step only when you miss it. The autopilot, the desk, the looks and the mouth came last, one at a time.

New here? Start with Install & first light and your first script. What follows assumes devices that run MoonLight on one network.

---

The StadBeest at a glance

part	hardware	lights	layout	effect

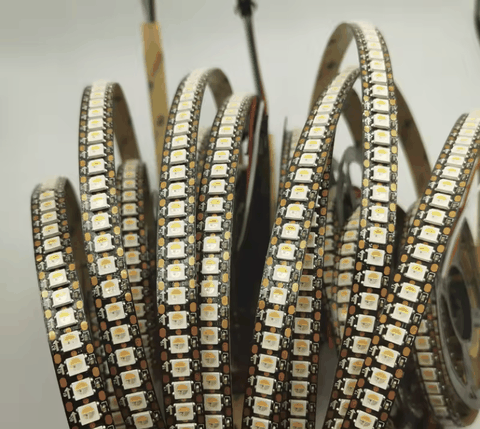

legs	LightCrafter 16 (ESP32-S3 N8R8)	10 SK6812 RGBW strips of 144	Tubes, tubeDistance 7	stadbeest-walk.mle, stadbeest-orb.mle, stadbeest-thrusters.mle

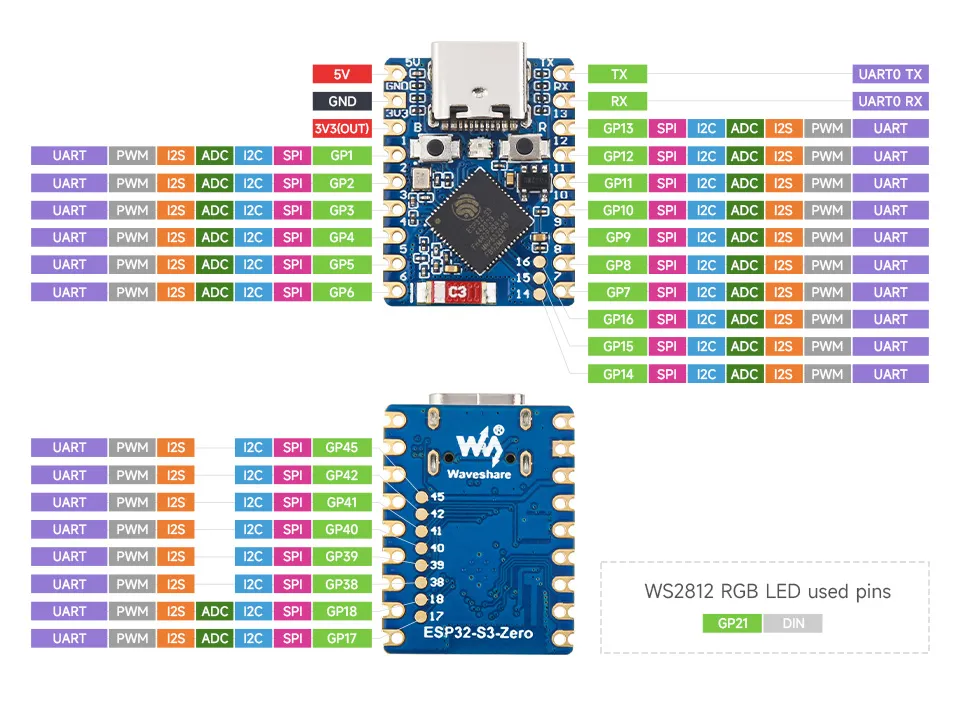

left eye	ESP32-S3-Zero, 4 MB	a 241-light ring disc	Rings241	stadbeest-frog-eye.mle, stadbeest-eye-orb.mle, stadbeest-sauron.mle
right eye	ESP32-S3-Zero, 4 MB	a 241-light ring disc	Rings241	the same three as the left eye
mouth	ESP32-C3 RGBWW PWM bulb	one RGBWW light	Grid 1×1×1	stadbeest-mouth.mle

The three looks, as each device's preview shows them; the mouth, one light, breathes along with each.

look	legs	eyes
walking
the orb
the thrusters

The legs device leads: its control surface holds the shared settings, and the eyes and the mouth follow it over OSC. Every device hears the same music through WLED audio sync, so legs, eyes and mouth move on the same beat. See it at the Museumnacht Den Haag, where it runs through the night as Het Stad Beest ontwaakt.

---

How the StadBeest is made

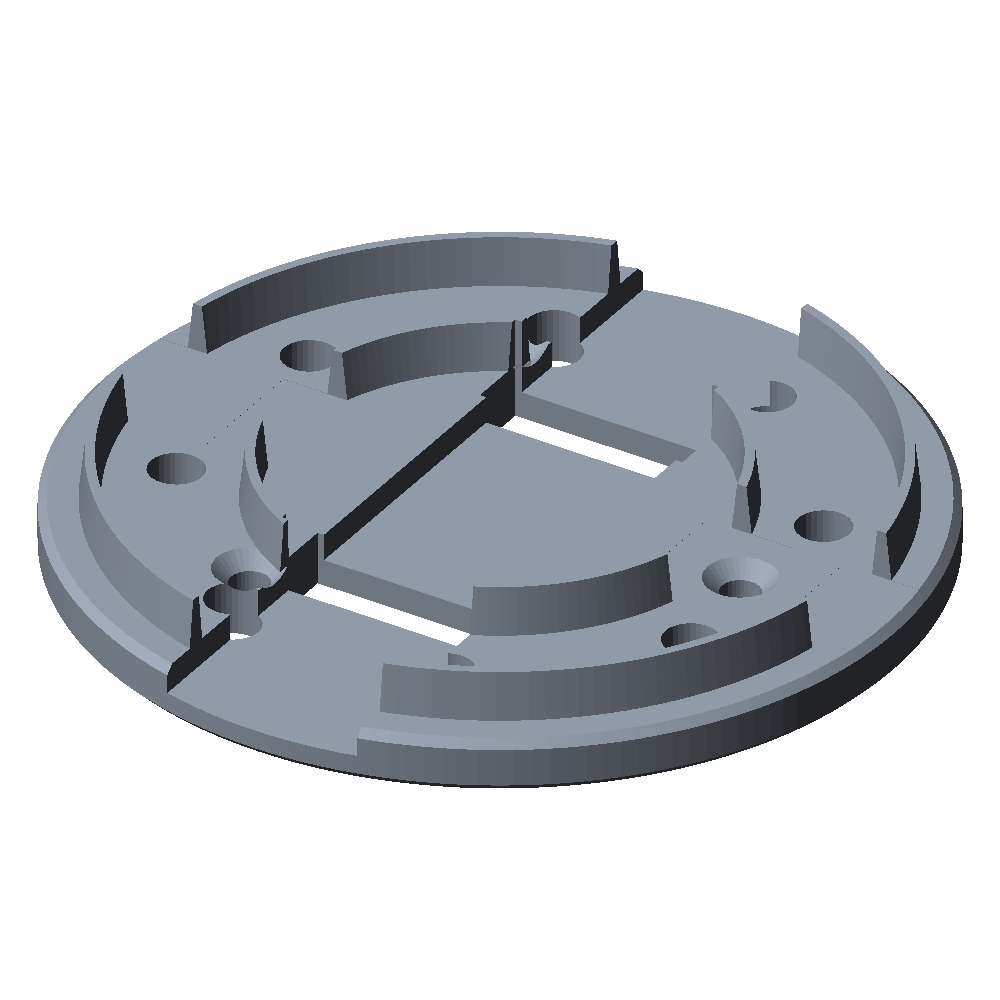

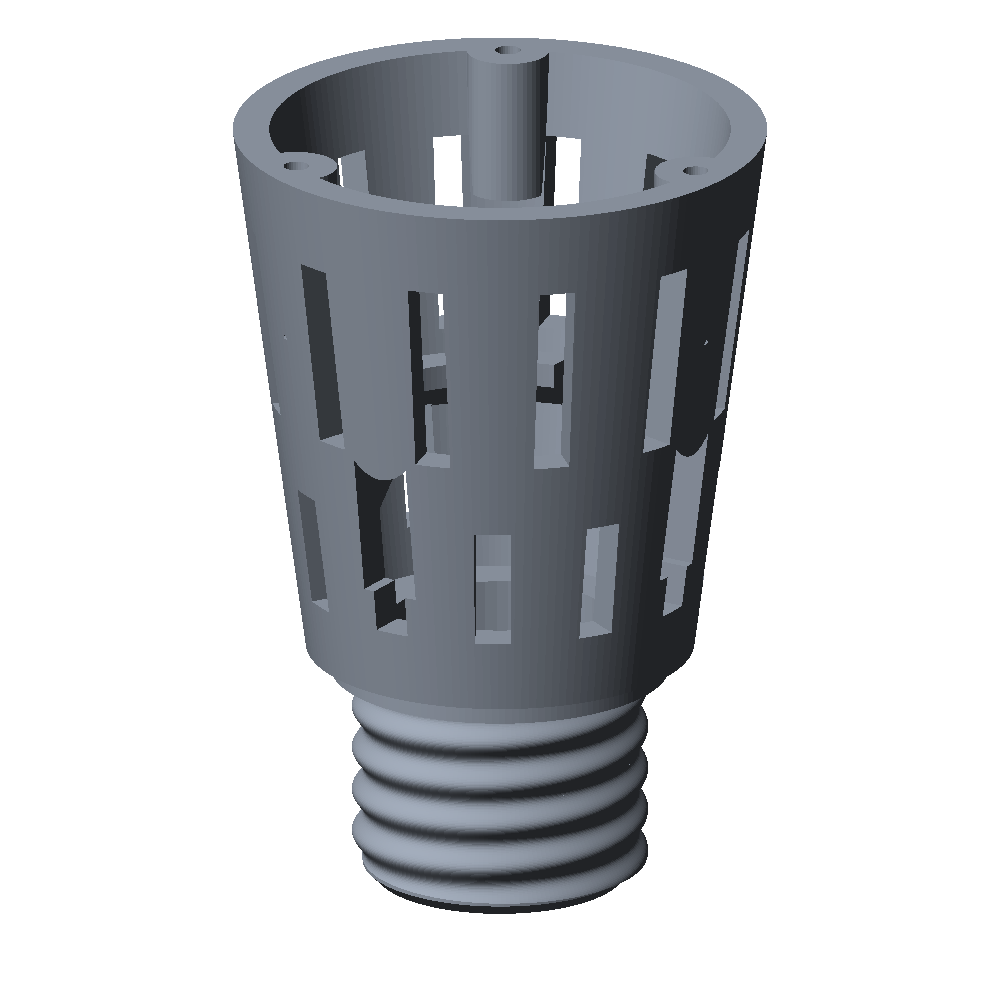

The body is built on a chandelier, and the eyes ride on bendable lamp arms, both found in a second-hand store. Each eye sits in a 3D-printed bulb body, shaped like a lamp with a screw base. A printed top plate screws onto the body and holds the 241-light ring disc.

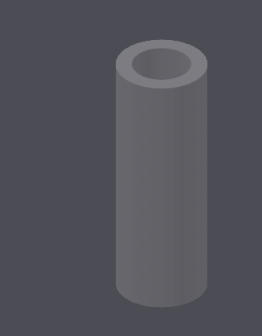

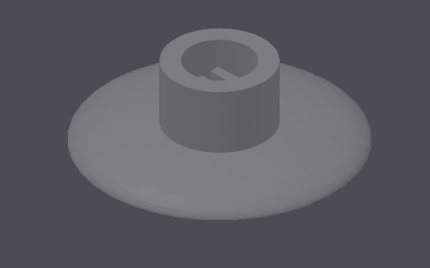

Each leg is a tube that holds one LED strip. A printed connector joins the top of a tube to the chandelier, and a printed foot closes the bottom, with a slot for the strip's cable.

---

1. One device per part

Give each physical part its own device and its own layout, sized to that part. A part then keeps its own frame rate, effect and brightness limits. A failing device takes down one part rather than the piece. The layout decides what an effect can show: the legs are ten vertical strips, the eyes are nine concentric rings, and each effect is written for exactly that shape.

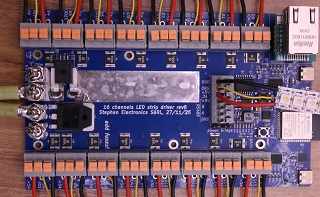

The legs run on a LightCrafter 16, a 16-channel LED driver board with Ethernet, using ten of its channels. Each eye runs on an ESP32-S3-Zero, small enough to fit inside the printed bulb. The mouth is a WiFi light bulb that ran WLED, moved to MoonLight without opening it: migrating over the air. A second bulb is a backup mouth, migrated the same way. It takes the first bulb's scripts and its Services, Effects and Drivers config files, and follows the legs at once, since they send to a group any device joins.

---

2. Effects written for the hardware

The StadBeest has three looks, each a pair of MoonLive scripts, one for the legs and one for the eyes: walking, the orb and the thrusters. Most of what makes them read well is design rather than code.

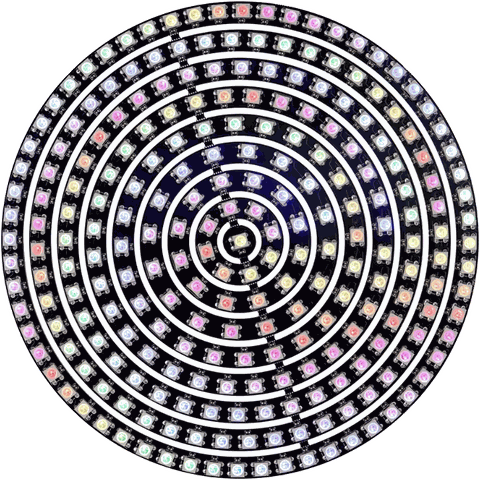

Draw for the medium. A ring disc has nine rings, from one light in the center to sixty at the edge. So the eye is built from ring zones: a dark pupil, a palette iris, a dim rim. Fine detail such as iris fibers disappears at that resolution, and a slit pupil reads only when it is a light wide at its middle.

Move few things at once. In a real walk most legs stand still while one or two lift. The legs effect keeps every leg lit and standing, and lifts each one briefly in a wave from back to front, the two sides half a cycle apart. A creature reads as alive when the eye can follow what moves.

Let it travel. A gaze that jumps to its next target reads as a glitch; one that eases there reads as an eye. The pupil eases in and out of each move over 400 ms, in sixteenths of a light, so its edge slides across the rings.

Tie color to movement. A standing leg holds its colors, a lifting leg carries them up with its foot, and each step moves the palette on a quarter. The eye's colors move on with each dart of its gaze. Color that drifts on its own competes with the motion instead of showing it.

Listen to the right signal.

• audioBeat() for timing: the legs step and the eyes dart on the beat.
• audioSmooth() for size: louder music lifts the legs higher and widens the pupil.
• A flash on the beat that fades over half a second, for brightness.

The raw frequency bands change every frame, and driven straight into brightness or height they look random.

Use the space the lights stand in. The ten legs stand in a ring, so a second layer on the legs device, the orb, places leg n at n × 36° on a circle. It floats a shape up and down through the ring: a tilted disc that wobbles as it turns, a ball that lights each leg twice, an egg that leans. Each leg lights where it crosses the shape's shell, so flat strips draw a solid in the air. The eyes show the same shape through a window: stadbeest-eye-orb takes the orb's controls and draws where the shell crosses the disc, scaled so the disc spans the legs' height.

Let the medium carry the physics. In the thrusters look each leg is a rocket's plume, a particle stream pouring down from the body. The sparks leave the nozzle almost at rest and fall, so they stay on their one-light-wide leg, and a plume's length is how long its sparks live. Louder music burns longer and every beat fires a burst; without music the thrusters fire short bursts around the ring, and every fourth burst all of them. The eyes become one burning eye, stadbeest-sauron: a fiery iris around a black slit that searches left and right and narrows on the beat.

Let two devices agree without talking. The eyes pick each dart's direction from audioPeakHz() at the beat, which both devices read the same. So they look the same way at the same moment, with no message between them.

Use them yourself. The six looks and the autopilot are part of MoonLight's script library. Every device running MoonLight lists them in its script picker and downloads one when it is chosen. The full code: stadbeest-walk.mle, stadbeest-orb.mle, stadbeest-thrusters.mle, stadbeest-frog-eye.mle, stadbeest-eye-orb.mle, stadbeest-sauron.mle and stadbeest-autopilot.mls; to write your own, start with your first script.

---

3. Iterate on the device

A script is a file, so the fastest loop is to edit it where it runs.

1. Write it to the device: curl -X POST -H "Expect:" --data-binary @walk.mle "http://<device>/api/file?path=/moonlive/stadbeest-walk.mle".
2. Read the effect's status on its card or in /api/state: a compile error shows there with its position.
3. Judge it on the real lights, then change one thing.

A file in /moonlive shadows the factory script of the same name, so the device runs your copy until you delete it (scripts on a device). A script that does not compile leaves its effect dark, so keep the last working version at hand and upload it back before you walk away.

---

4. One surface layout for every device

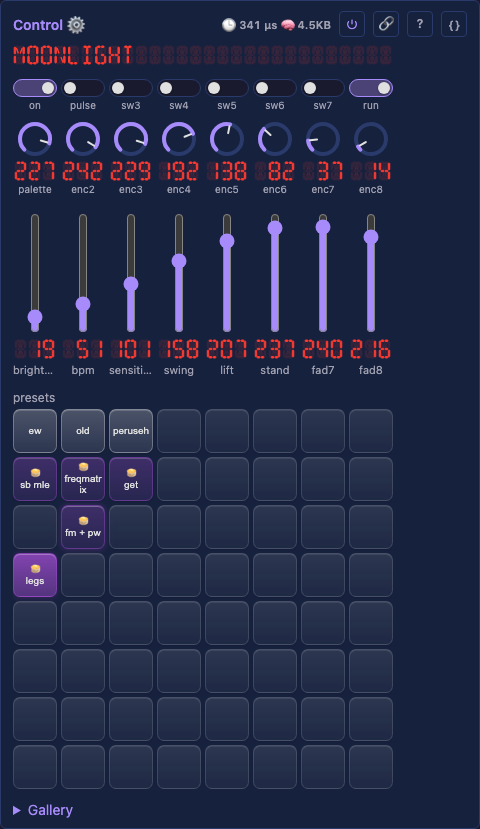

Each device's Control card is a desk of eight faders, eight encoders and eight switches. The first slot of each bank is the device's own. From the second on the desk follows the look that runs: automap puts that effect's controls on the slots in the order it declares them.

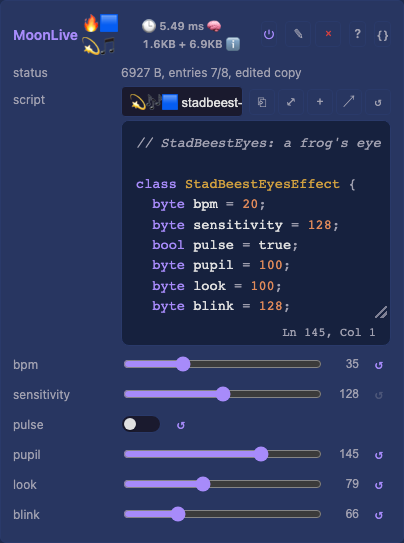

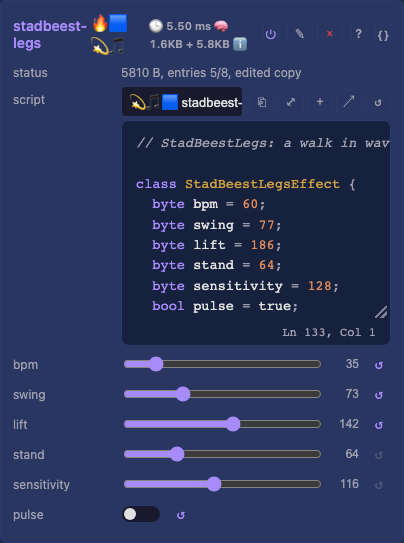

Every StadBeest effect that hears music declares bpm, sensitivity and pulse first, so those slots mean the same on the legs and on the eyes in every look. The rest are the look's own: on the walk fader4 is swing, on the frog eye it is pupil. A slot assigned by hand keeps its target, which is how the look switches and the autopilot stay put.

slot	legs	each eye	mouth
switch1	Drivers.on	Drivers.on	Drivers.on
switch2	pulse	pulse	pulse
switch3	walk.enabled	frog-eye.enabled
switch4	orb.enabled	eye-orb.enabled
switch5	thrusters.enabled	sauron.enabled
switch8	autopilot run
fader1	Drivers.brightness	Drivers.brightness	Drivers.brightness
fader2	bpm	bpm	bpm
fader3	sensitivity	sensitivity	sensitivity
fader4 to fader7	the look's next numbers	the look's next numbers	rest
fader8	autopilot seconds
encoder1	Drivers.palette	Drivers.palette	Drivers.palette
encoder2 and on	the look's choices, such as the orb's shape	the same

A slot holds the value of the control it drives, so fader2 at 33 means bpm 33. Each look is an effect of its own on every device, named after its script without the stadbeest- prefix, and switch3 to switch5 turn them on and off through their enabled. So one switch changes the look on the legs and on both eyes at once, and the desk follows it. Assign a slot by hand from the Control card.

---

5. Linking the devices with OSC

The OSC service mirrors a surface to the network, which is all the linking an installation needs.

flowchart LR
    desk["iCON QCon<br/><i>a MIDI desk</i>"]
    bridge["MIDI bridge<br/><i>the desk on the network</i>"]
    leader["legs, the leader<br/><i>MIDI from the network ·<br/>OSC feedback multicast to 9001</i>"]
    group(("group<br/>239.255.77.78"))
    eyeL["left eye<br/><i>OSC listen 9001</i>"]
    eyeR["right eye<br/><i>OSC listen 9001</i>"]
    mouth["mouth<br/><i>OSC listen 9001</i>"]

    desk <-->|"USB MIDI"| bridge
    bridge <-->|"RTP-MIDI 5004"| leader
    leader -->|"every slot that changes,<br/>all of them every 30 s"| group
    group --> eyeL & eyeR & mouth

    classDef lead fill:#2d3561,stroke:#7b88c9,color:#fff
    classDef follow fill:#1f4d3d,stroke:#5fb89a,color:#fff
    classDef side fill:#4d3d1f,stroke:#c9a95f,color:#fff
    class leader lead
    class eyeL,eyeR,mouth,group follow
    class desk,bridge side

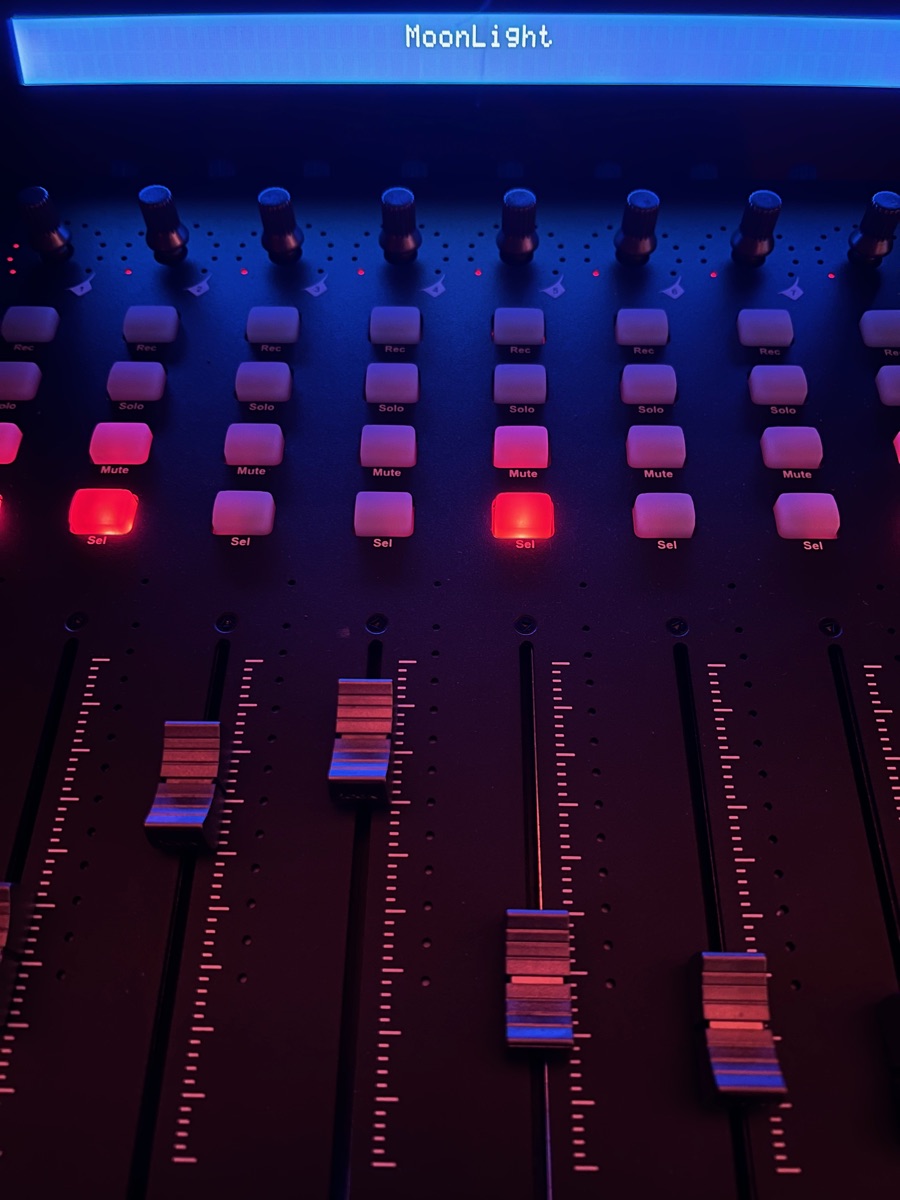

The leader owns the state, and the eyes take it over OSC. The desk is the leader's own, over the network rather than a cable: a MIDI bridge.

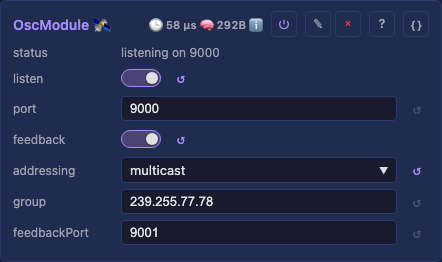

The leader (the legs): OSC feedback on, addressing multicast, group the default 239.255.77.78, feedbackPort 9001. Every slot that changes on the leader, from its card, a preset, a script or a desk, goes out as /mm/fader/N, /mm/encoder/N or /mm/switch/N.

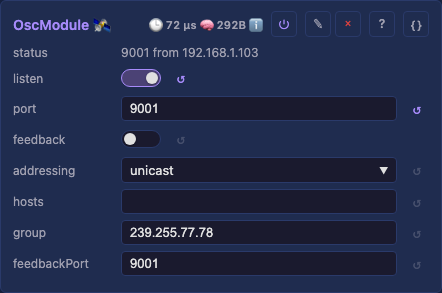

The followers (the eyes and the mouth): an OSC service with listen on, port 9001, the leader's feedbackPort, and feedback off. A follower joins the group, writes each message onto its own slot N, and its assignments carry the value to its own controls. The leader's preset pad states go out on an address of their own, which a follower ignores, so its own presets stay untouched.

Three details matter:

• The followers listen on 9001 and the leader on 9000, so the leader never hears its own feedback, and a follower never answers back.
• A follower takes a value when the leader's slot changes, and the leader sends every slot again every 30 seconds. A value lost on WiFi, or a follower that rebooted, is repaired within that time.
• WiFi multicast drops packets that arrive in a burst, so the leader sends that refresh one slot at a time. A writer on the leader spreads its own changes the same way.

---

6. One source of music

Every device runs the Audio service in receive mode, and one machine sends WLED audio sync to all of them. That machine is a device with a microphone, or a computer running MoonLight that captures what it plays. One source means one beat: the legs step, the eyes dart and every flash lands on the same moment.

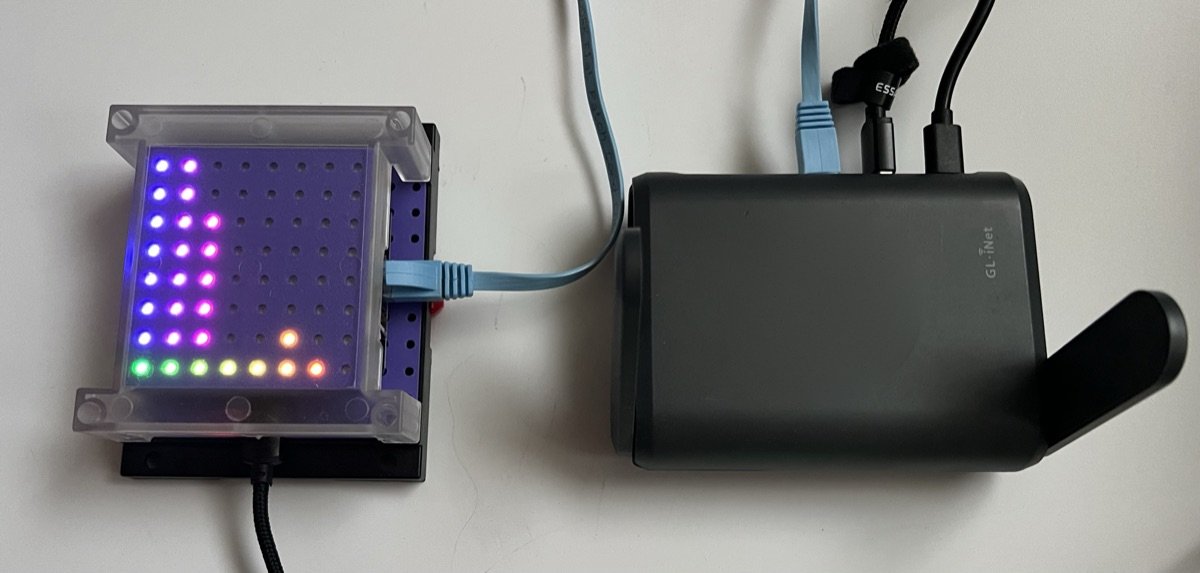

Here the source is an ESP32-S31 CoreBoard listening with its on-board microphone, wired by Ethernet to the installation's router: the network.

---

7. Running unattended

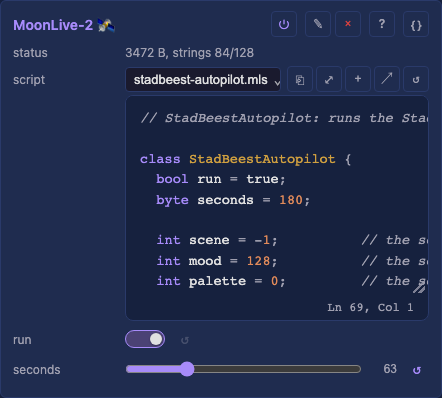

A MoonLiveService on the leader runs stadbeest-autopilot.mls, which plays the beast through a whole museum night without anyone at the desk.

• Scenes: every seconds, three minutes by default, it picks a new scene. A scene moves on to the next look, walking, the orb or the thrusters, by switching switch3 to switch5. It picks a built-in palette, in a third of the thruster scenes stadbeest-fire.mlp, a mood from calm to wild, how much the music counts and pulse on or off. That palette is computed every frame: louder music burns hotter, a beat flares the hot end white, and the flames flicker. A palette has the same number on every device, so the eyes and the mouth pick the same one.
• Breathing: within a scene the energy rises and falls once a minute, through fader2, the tempo of whatever look runs.
• Through the surface: it writes the shared slots with setControl("fader2", value), exactly as a person moves a fader. The legs follow on the leader, and the eyes and the mouth over OSC.
• One slot at a time: it writes one slot every 20 ms, every ten seconds, so no burst reaches the network.
• Handing over: its run switch sits on switch8; off gives the beast back to people and desks.

---

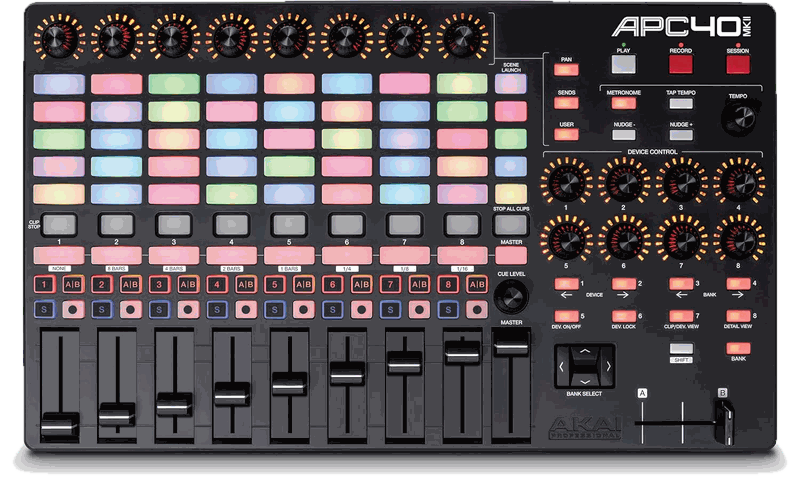

8. Driving it by hand: an Akai APC40 mkII

A desk on the leader moves the whole installation, since its changes go out over OSC like any other. The StadBeest takes an Akai APC40 mkII: faders, knobs and buttons for the shared slots, and a pad per preset.

Setting it up

1. On the leader, add a MIDI service under Services and set its profile to Akai APC40 mkII.
2. Plug the APC40 into a laptop next to the beast, and open the leader's page in Chrome.
3. Mark the leader's address as secure in Chrome once, as MIDI, details shows, since a device's own page is plain http.
4. Allow MIDI, with SysEx, when Chrome asks. The desk lights up: the knob rings, the activator lights and the preset pads.

The browser is the bridge between desk and device, so the laptop keeps the leader's page open while the desk is in use.

Playing it

APC40	the StadBeest
track faders 1-7	brightness, then the look's bpm, sensitivity and its own numbers
track fader 8	the autopilot's seconds, how long a scene lasts
track knobs 1-8	the palette, then the look's choices and the numbers past the faders
activator 1	on and off
activator 2	pulse, legs and eyes together
activators 3 to 5	the look: walking, the orb, the thrusters
activator 8	the autopilot's run
clip pads	the presets, the top-left pad being preset 1; a stored preset glows white and the applied one green

The autopilot rewrites the shared slots every ten seconds, so switch it off with activator 8 before playing by hand, and on again to hand the beast back. The eyes and the mouth follow every move over OSC, as they follow the autopilot. A phone or a tablet reaches the same slots too: connecting a control surface.

Without a laptop: a MIDI bridge

A desk can also plug into a small device of its own, which puts it on the network: no laptop, and no cable to the beast. The StadBeest uses an ESP32-S3 N16R8 for it, with an iCON QCon Pro G2, which has its own power adapter.

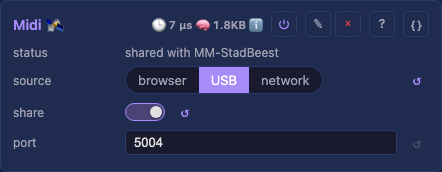

1. Install it as the MIDI bridge device model, which sets its MIDI service to source USB with share on.
2. Plug the desk into the board's own USB port, the one marked USB, and power the board from its other port.

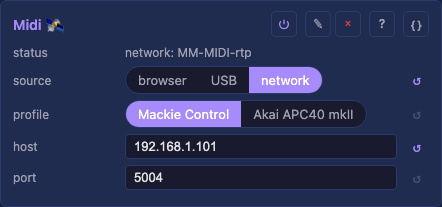

3. On the leader's MIDI service, set source to network and host to the bridge's name, such as MM-MIDI-rtp.local, or its address, and pick the desk's profile there.

The bridge is a cable over RTP-MIDI, the standard for MIDI on a network, and keeps no state of its own. So the desk works on the leader as if plugged into it. The leader greets it, moves its motors, lights its pads with its presets and holds a motor still under a hand. A Mackie desk's display shows the leader's display line: the last change for five seconds, then the device's name.

An APC40 mkII takes its power from USB, which this board's port does not supply, so it stays on the laptop or goes through an active, powered USB hub.

---

9. Updating devices you cannot reach

Devices inside a sculpture are hard to reach with a cable, so update them over the network and check before you send.

• Compare the new image's size with the partition total on the device's Firmware card.
• A device with two app slots takes POST /api/firmware/upload directly.
• A device with 4 MB of flash has one app slot. POST /api/firmware/moonbase restarts it into MoonBase, its recovery image, which takes the upload and restarts into the new firmware (updating firmware).
• Update one device, see it run, then the next.

---

10. The network

The StadBeest brings its own network: a GL.iNet Slate AX (GL-AXT1800) travel router. Every device joins its WiFi, and the audio source is wired to it by Ethernet, so the beast runs the same at every venue.

Device	Board	Address	Connection	Role
MM-StadBeest	LightCrafter 16 (ESP32-S3)	192.168.1.103	WiFi	the legs, the leader
MM-eye1	ESP32-S3-Zero	192.168.1.149	WiFi	an eye
MM-Eye2	ESP32-S3-Zero	192.168.1.216	WiFi	an eye
MM-bulb1	ESP32-C3 RGBWW PWM bulb	192.168.1.230	WiFi	the mouth
MM-bulb2	ESP32-C3 RGBWW PWM bulb	192.168.1.215	WiFi	the backup mouth, set up as MM-bulb1
MM-S31	ESP32-S31 CoreBoard	192.168.1.125	Ethernet, 1 Gbit	the audio source
MM-MIDI-rtp	ESP32-S3 (N16R8)	192.168.1.101	WiFi	the MIDI bridge

What travels	From, to	How
Audio	the S31 to every device	WLED audio sync, multicast 239.0.0.1, port 11988
Shared controls	the leader to the eyes	OSC, multicast 239.255.77.78, port 9001
The desk	the bridge and the leader	RTP-MIDI, unicast, port 5004
Discovery	every device	multicast and broadcast

Two router settings keep it steady:

• IGMP snooping off (Network, IGMP Snooping). A router that snoops without asking members again forgets them: on the Slate AX a board lost the group 18 seconds after joining it. The audio then stopped every 20 seconds, and an eye missed the leader's palette changes. With a few small streams on a dedicated network, sending multicast to every device costs nothing worth saving.
• An address reservation per device (Network, LAN), so the addresses above stay the same. The leader's MIDI host is the bridge's address, and a host setting also takes a name, but a name resolves by mDNS, which is multicast again.

A device that stops hearing a group joins it again after 3 seconds of silence, so a network that drops multicast now and then recovers on its own. For a stream on a network you do not control, unicast is the reliable choice: each copy is acknowledged and retried, where multicast goes out unacknowledged at the slowest rate. Set the source's Audio addressing to unicast with the devices in hosts; the same holds for Art-Net, E1.31 and DDP from Network Send.

---

The text next to the beast

The card beside the StadBeest at the Museumnacht, in Dutch and English, with a QR code to the guide.

Het Stad Beest ontwaakt

Dit beest is gemaakt van wat de stad wegdoet. Zijn lijf is een kroonluchter, zijn nek zijn buigzame lamparmen uit de kringloopwinkel, en zijn ogen zitten in 3D-geprinte gloeilampen. Vanavond wordt het wakker. Het loopt op tien poten van licht, steeds een paar tegelijk, zoals een echt dier. Het hoort de muziek: op de beat zet het een stap, kijkt het om zich heen en flitst het. Hoe harder de muziek, hoe hoger het zijn poten optilt en hoe wijder zijn pupillen worden.

Niemand bestuurt het. Elke paar minuten kiest het zelf nieuwe kleuren en een nieuwe stemming, van rustig tot wild. Drie kleine computers praten via wifi met elkaar, zodat poten en ogen samen één beest zijn. Ze draaien op MoonLight, open-source lichtsoftware van vrijwilligers: iedereen kan er zelf zo'n beest mee bouwen.

Scan de code om te zien hoe het gemaakt is en om contact met ons op te nemen.

Door Ewoud Wijma - MoonModules

The City Beast awakens

This beast is made of what the city throws away. Its body is a chandelier, its neck is bendable lamp arms from a second-hand shop, and its eyes sit in 3D-printed light bulbs. Tonight it wakes up. It walks on ten legs of light, a few at a time, like a real animal. It hears the music: on the beat it takes a step, looks around and flashes. The louder the music, the higher it lifts its legs and the wider its pupils grow.

Nobody steers it. Every few minutes it picks new colors and a new mood of its own, from calm to wild. Three small computers talk over WiFi, so its legs and eyes move as one beast. They run MoonLight, open-source lighting software made by volunteers: anyone can build a beast like this.

Scan the code to see how it is made and to get in touch with us.

By Ewoud Wijma - MoonModules
