MoonInstaller

Three words name three different things, and a device is configured by all of them: the firmware it runs, the deviceModel it is, and the board it sits on. Getting a device onto the network is the installer's job; knowing what it is afterwards is this vocabulary.

The three words come first, then where a default legitimately comes from.

flowchart TB
    mcu["MCU<br/>classic · S3 · P4"]
    fw["firmware<br/>the compiled binary"]
    model["deviceModel<br/>the assembled product<br/>Olimex ESP32-Gateway Rev G"]
    board["board<br/>the bare PCB, literally"]
    name["deviceName<br/>which individual unit this is"]

    mcu --> fw
    fw -->|"seeds a per-chip default"| model
    board --> model
    model --> name

    fixes["fixes: which radios, which<br/>ethernet driver, PSRAM"]
    owns["fixes: the real pin map,<br/>buttons, mic, TX power"]

    fw -.-> fixes
    model -.-> owns

    classDef silicon fill:#4d3d1f,stroke:#c9a95f,color:#fff
    classDef product fill:#1f4d3d,stroke:#5fb89a,color:#fff
    classDef unit fill:#2d3561,stroke:#7b88c9,color:#fff
    classDef note fill:#3d2d61,stroke:#a07bc9,color:#fff
    class mcu,fw silicon
    class model,board product
    class name unit
    class fixes,owns note

A default belongs at the level that fixes it, which is the whole rule. The firmware seeds what the silicon decides; the deviceModel overrides it with what the product wired. So the ethernet pins appear at both levels without contradiction: the firmware offers a fallback, the catalog entry states the truth. A control nobody fixed is omitted, and stays unset for the user to wire.

The three words

Three distinct things, kept distinct in the vocabulary:

• firmware, the compiled binary (chip target + which radios/peripherals are built in).
• deviceModel, the whole assembled product, identified by its catalog name (Olimex ESP32-Gateway Rev G). This is which hardware this is. It is distinct from deviceName, which individual unit this is (per-unit identity the user sets, see Device name); a device (the umbrella term) has a deviceName and a deviceModel.
• board, the bare PCB only. The word survives in its literal sense: on-board LED, on-board peripherals, board-soldered pins, things physically on the PCB. (A deviceModel is a board plus whatever is wired onto it.)

Firmware is the compiled binary: chip target plus which radios, peripherals and sdkconfig fragments are included. One chip's firmware carries every Ethernet driver that chip can host; which PHY and pins a device model uses is runtime configuration. The variants themselves are listed in firmware variants.

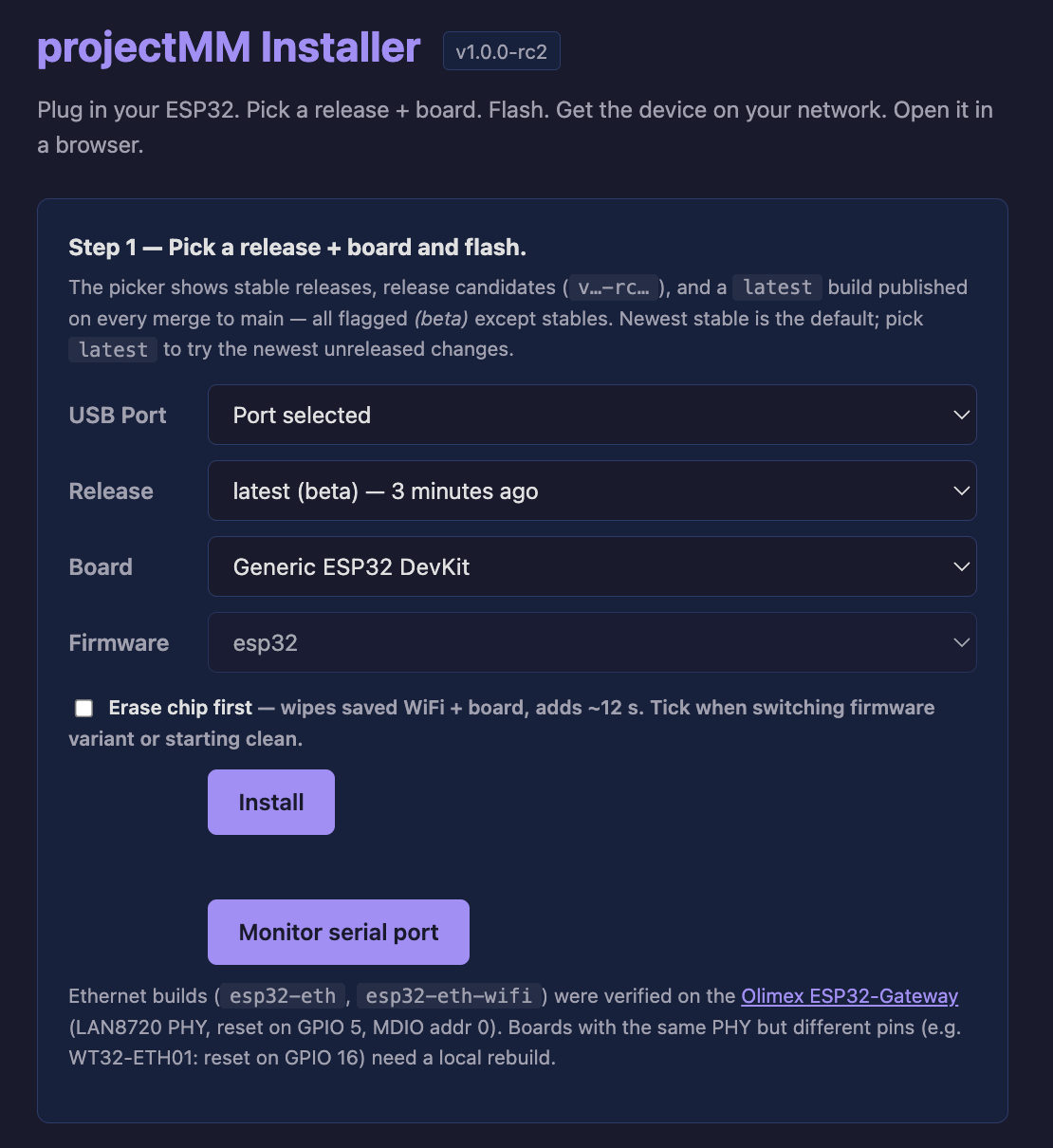

deviceModel is the physical hardware: chip + PCB + on-board peripherals (PHY, USB-serial, PSRAM, antenna), identified by its product name. Examples: Olimex ESP32-Gateway Rev G, LOLIN D32, Generic ESP32 Dev. A unit cannot identify its own deviceModel (no readable PCB ID on classic ESP32), so MoonDeck deduces it from the firmware where unambiguous (esp32-eth* ⇒ Olimex) and otherwise lets the user pick. It is stored on the unit as SystemModule's deviceModel Text control (display-only in the UI; HTTP /api/control writes still apply). MoonDeck mirrors the picked / deduced value to the unit via POST /api/control after each discover and after every dropdown change. The catalog of valid deviceModels lives at mooninstaller/deviceModels.json, shared between MoonDeck and the web installer. MoonDeck reads it for its dropdown and HTTP push over plain REST on the LAN. The web installer reads it for its picker and pushes the whole entry, deviceModel plus every module/control, over serial during provisioning as REST ops ("Improv = REST over serial", the APPLY_OP vendor RPC; see ImprovProvisioningModule.md). Pushing over serial sidesteps the mixed-content block that stops an HTTPS installer page from POSTing to an http:// device; an already-running device is re-configured via MoonDeck on the LAN. SET_BOARD carries only the board name, and every other field ships over HTTP after WiFi association. Do not extend its wire format: that couples unrelated controls to the board-name lifecycle and hides the timing constraint. A pre-association control gets either its own vendor RPC dispatched before the credentials, or a board-specific sdkconfig fragment when the value is truly board-static.

A deviceModel can run multiple firmwares (the Olimex Gateway runs both esp32-eth and the default esp32); a firmware can run on multiple deviceModels (esp32 runs on any classic ESP32 dev kit). The esp32s3-n16r8 firmware is S3-only and does not run on the Olimex Gateway or other classic-ESP32 hardware. The codebase reserves "deviceModel" exclusively for the physical product and "firmware" exclusively for the compiled binary.

Config provenance: MCU → deviceModel

Firmware-vs-deviceModel is a two-level model for where a pin or setting default comes from. The installer and MoonDeck use it so a user picks their hardware instead of hand-typing every GPIO. A default belongs at the level that fixes it:

• MCU → firmware. The chip (classic / S3 / P4) and the compiled binary. Fixes silicon- and build-wired facts: native-radio presence, PSRAM, and which Ethernet driver is compiled in, RMII EMAC (classic/P4) vs W5500 SPI (S3), i.e. hasEthernet and the driver kind. These are the compile-time hasI2sMic / hasWiFi / hasEthernet constants in platform_config.h; the firmware variant is the MCU choice. The firmware also ships a per-chip default eth pin seed (platform::ethConfigDefault), a fallback so an un-configured unit at least attempts a sensible map, but that is only a seed, not the truth for any specific product (see below).
• deviceModel → the assembled product. Everything physical about a specific product, overriding the firmware seed where the product differs. The actual Ethernet PHY pin map, PHY type and MDC/MDIO/clock for this product. The catalog entry pushes them via setEthConfig, replacing ethConfigDefault: the Olimex Gateway's ethType:1, ethRstGpio:5, ethClockGpio:17 are Olimex-specific rather than the generic-classic seed. The same entry carries the C6 SDIO pins, the button pins, the on-board status LED, and whatever else is wired on the product, such as a mic, LED strands or a loopback jumper. One catalog entry per deviceModel captures all of it.

So the Ethernet pins live at both levels, and that's not a contradiction: the firmware seeds a per-chip default, the deviceModel fixes the real map. The driver (which Ethernet stack) is firmware-only; the pin map is firmware-seeded but deviceModel-authoritative.

The deviceModel is one level, there is no separate per-unit provenance level. Whether a control is PCB-fixed or user-wired is not a taxonomy the code tracks; it falls out of what the catalog entry lists. A bare dev kit lists few controls (the user wires the rest, so those stay unset); a finished product lists more (its wiring is fixed). Same kind of entry, different completeness, no kind: flag.

The governing rule is "default only where the hardware fixes it", the Defaults rule applied to pin provenance. An entry defaults a control by including it and leaves a user-wired control unset by omitting it, so the data carries the rule with no level-tagging. It covers settings as well as pins. txPowerSetting is set per entry because whether a rig sustains full-power WiFi TX is a brownout property of the assembly and its power supply rather than the chip. The catalog pins Network.txPowerSetting: 8 for the ESP32-S3 N16R8 Dev, which browns out at full power on typical USB. The catalog is mooninstaller/deviceModels.json (schema in the installer README).
