TextEffect

Source: TextEffect.h

TextEffect

class TextEffect

src/light/effects/TextEffect.h:18

Inherits: EffectBase

Effect rendering a scrolling multi-line string in a bitmap font.

The text is static by default, laid out from the top left and clipped at the grid's edge. scroll marches the whole block leftward as a marquee instead, wrapping as it goes. Each newline drops a row, so several lines render at once.

Prior art: MoonLight's Scrolling Text, whose font set and scroll this carries.

Public Attributes

char text_ = "MoonLight" : The string to show, where the text area preserves its newlines.

bool scroll = false : March the block leftward as a marquee rather than holding it still.

uint8_t font = 1 : Which bitmap font renders it.

uint8_t speed = 30 : How fast the marquee runs, when scrolling.

uint8_t hue = 128 : The palette index the text takes, mid-palette since some palettes start black.

Public Methods

virtual inline const char * tags() const override : Catalog tags: MoonLight origin.

virtual inline Dim dimensions() const override : Draws on the z=0 plane, which extrude fills through a volume.

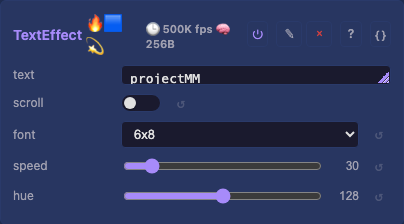

virtual inline void defineControls() override : Publish the string, the scroll, the font and the color.

virtual inline void tick() override : Draw the text, either in place or marched along its marquee cycle.
