TetrixEffect

Source: TetrixEffect.h

Tetris

struct Tetris

src/light/effects/TetrixEffect.h:50

Per-column falling-brick state, MoonLight's Tetris struct.

Public Attributes

float pos = 0.0f : head position of the falling brick, in LED rows

float speed = 0.0f : fall speed in rows per frame

uint8_t col = 0 : palette index for this column's bricks

uint16_t brick = 0 : brick height in LEDs

uint16_t stack = 0 : stacked height at the bottom

uint32_t step = 0 : state machine value, or a future millis() timestamp above 2

float roll = 0.0f : start-roll carry, paced at the reference frame rate

TetrixEffect

class TetrixEffect

src/light/effects/TetrixEffect.h:28

Inherits: EffectBase

Tetris-style effect: falling, stacking blocks.

Author: Andrew Tuline (WLED-SR), via the predecessor, https://github.com/ewowi/MoonLight/blob/main/src/MoonLight/Nodes/Effects/E_WLED.h

Each column drops a brick of light that falls at its own speed onto a growing stack. Once the stack fills a column, that column blanks to black and the cycle restarts. Every column runs its own state machine, so they desync into a rain of stacking bricks.

Prior art: MoonLight's Tetrix, descended from the WLED effect by Aircoookie and blazoncek.

Public Attributes

uint8_t speedControl = 0 : Fall speed, MoonLight's default. 0 gives each brick a random speed.

uint8_t widthControl = 0 : Brick height. 0 randomizes it, otherwise it derives from this.

bool oneColor = false : Share one slowly-advancing color across a column's bricks.

Public Methods

virtual inline const char * tags() const override : Catalog tags: MoonLight origin, MoonModules.

virtual inline Dim dimensions() const override : Writes the z=0 slice only, iterating x and y.

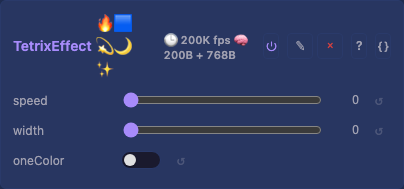

virtual inline void defineControls() override : Publish the fall speed, the brick height and the one-color switch.

virtual inline void prepare() override : Size one drop per column and give each a 2 s start delay.

virtual inline void tick() override : Advance every column's state machine and paint its brick and stack.

More info

The per-column state machine
