SineEffect

Source: SineEffect.h

SineEffect

class SineEffect

src/light/effects/SineEffect.h:15

Inherits: EffectBase

Effect of a moving sine wave across the layer.

Red, green and blue each follow a sine along one axis, a third of a turn apart. So the box glows through shifting colors that scroll with time. A flat layout holds its depth term constant, which reads as a red and green wash.

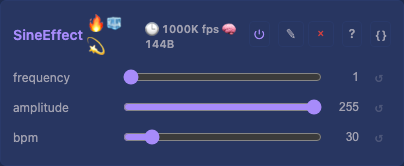

Public Attributes

uint8_t frequency = 1 : How many waves cross the box.

uint8_t amplitude = 255 : Peak brightness.

uint8_t bpm = 30 : How fast the field scrolls.

Public Methods

virtual inline const char * tags() const override : Catalog tags for the visual catalog.

virtual inline Dim dimensions() const override : Each axis drives its own color channel.

virtual inline void defineControls() override : Publish the wave's frequency, its brightness and its speed.

virtual inline void tick() override : Walk the phase, then write each channel from its own axis.
