PaintBrushEffect¶
src/light/effects/PaintBrushEffect.h:26Inherits:
EffectBase
Effect that paints moving brush-stroke lines across the layer.
Author: @TroyHacks (WLED MoonModules, GPLv3), https://github.com/ewowi/MoonLight/blob/main/src/MoonLight/Nodes/Effects/E_MoonModules.h
Lines whose endpoints oscillate in 3D on the beat, each shortened by a band's magnitude. That shortening is what makes the strokes curve and sweep. The field fades each frame, so the lines leave brush strokes rather than redrawing cleanly.
Prior art: MoonLight's PaintBrush, whose six endpoints and length feedback this reproduces.

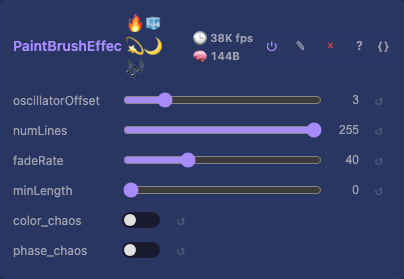

Public Attributes¶
uint8_t oscillatorOffset = 6 * 160 / 255
: The phase-spread multiplier between the six endpoint oscillators.
uint8_t numLines = 255
: How many lines are animated in parallel.
uint8_t fadeRate = 40
: How fast the background decays, which is the brush-stroke trail.
uint8_t minLength = 0
: A line draws only when it runs longer than this.
bool color_chaos = false
: Vary the hue per line rather than running a gradient across the bands.
bool phase_chaos = false
: Jitter every endpoint's phase once a frame.
Public Methods¶
virtual inline const char * tags() const override
: Catalog tags: MoonLight origin, MoonModules, audio-reactive.
virtual inline Dim dimensions() const override
: Volumetric: the endpoints oscillate on all three axes.
virtual inline void defineControls() override
: Publish the oscillators, the line count, the trail and the two chaos switches.
virtual inline void tick() override
: Fade the field, then draw each line between its two oscillating endpoints.
More info¶
What a line does¶
Each line takes one band, and its Euclidean span scaled by that band becomes the shorten amount. A line draws only when it runs longer than minLength, so quiet bands stay dark. Silence leaves no lines at all, and the field fades to black.
The soft anti-alias control is omitted, since [draw::line] is crisp and has no Xiaolin-Wu form.
