LightPresetsModule

Source: LightPresetsModule.h

LightPresetsModule

class LightPresetsModule

src/light/drivers/LightPresetsModule.h:39

Inherits: MoonModule, ListSource

The reusable light-preset library, a Drivers submodule owning NAMED channel-role wirings, each editable in its own row and referenced by many drivers.

A driver stores a preset's STABLE id and resolves it here into its own Correction, so a wiring is built once and reordering other presets disturbs no reference.

A curated set of real fixtures is seeded read-only on first boot. A user adds custom named wirings alongside them. The render loop never reads this module.

Public Methods

virtual inline ModuleRole role() const override : Role for type identification (no RTTI needed).

virtual inline bool userEditable() const override : Not user-editable: every driver resolves its preset through this one boot-wired library.

inline uint32_t defaultId() const : The first preset's id: a safe default for a fresh driver or a dangling reference.

inline uint8_t presetCount() const : How many presets the library holds, for a driver building its preset selector.

inline const char * nameAt(uint8_t i) const : The name of preset row i, for a driver building its selector.

inline uint32_t idAt(uint8_t i) const : The stable id of preset row i, which is what a driver stores.

inline uint8_t indexOfId(uint32_t id) const : The row currently holding id, for rendering a selector at its referenced preset.

inline bool presetHasSynthChannel(uint32_t id) const : Whether the preset carries a channel the white mode would synthesise.

inline bool deriveCorrection(uint32_t id, uint8_t brightness, Correction & out) const : Resolve a preset id into a driver's flat Correction; false leaves out untouched.

inline LightPresetsModule() : Claim the singleton seat at construction, before any driver builds its selector.

virtual inline void setup() override : Seed the curated built-ins when the set is empty.

virtual inline void prepare() override : Re-claim the singleton seat, which is a no-op while we already hold it.

virtual inline void release() override : Vacate the singleton seat, then release the base.

virtual inline void defineControls() override : Bind the presets list, which the editable-list primitive renders.

virtual inline uint8_t listRowCount() const override : How many preset rows the list holds.

virtual inline void writeListRow(JsonSink & sink, uint8_t row) const override : Write one row, which is also the persisted form, so it carries the full wiring.

virtual inline void writeListOptionSets(JsonSink & sink) const override : Emit the shared channel-role option set every row's selectors reference.

virtual inline void writeListRowDetail(JsonSink & sink, uint8_t row) const override : Write one row's editable fields: the name, the channel count, and a role per channel.

virtual inline bool isEditableList() const override : The list is editable, so the UI offers add, delete and reorder.

virtual inline bool addListRow(uint32_t & outId) override : Add a preset, returning its new stable id.

virtual inline bool deleteListRow(uint32_t id) override : Delete a preset, refusing a locked built-in.

virtual inline bool moveListRow(uint32_t id, uint8_t to) override : Move a custom preset, which may not cross into the locked built-in block.

virtual inline bool setListRowField(uint32_t id, const char * field, const char * valueJson) override : Edit one field of a preset: its name, its channel count, or one channel's role.

virtual inline bool restoreList(const char * json, const char * key) override : Restore the presets and the role pool, so custom wirings survive a reboot.

Public Static Attributes

constexpr uint8_t kMaxPresets = 32 : How many preset rows a device can hold.

Public Static Methods

static inline LightPresetsModule * active() : The boot library, which a driver resolves its preset reference through.

More info

What a preset is

A channel-role layout: role r at channel i says channel i of a light carries role r. The color roles cover the strip orders, and the fixture roles cover pan, tilt and the rest.

Storage is uncapped

A preset is exactly as wide as its fixture. Role bytes live in one dynamic pool, each preset a slice, so a moving head declares as many channels as it has. The pool is touched on the cold path only, leaving it free to reallocate.

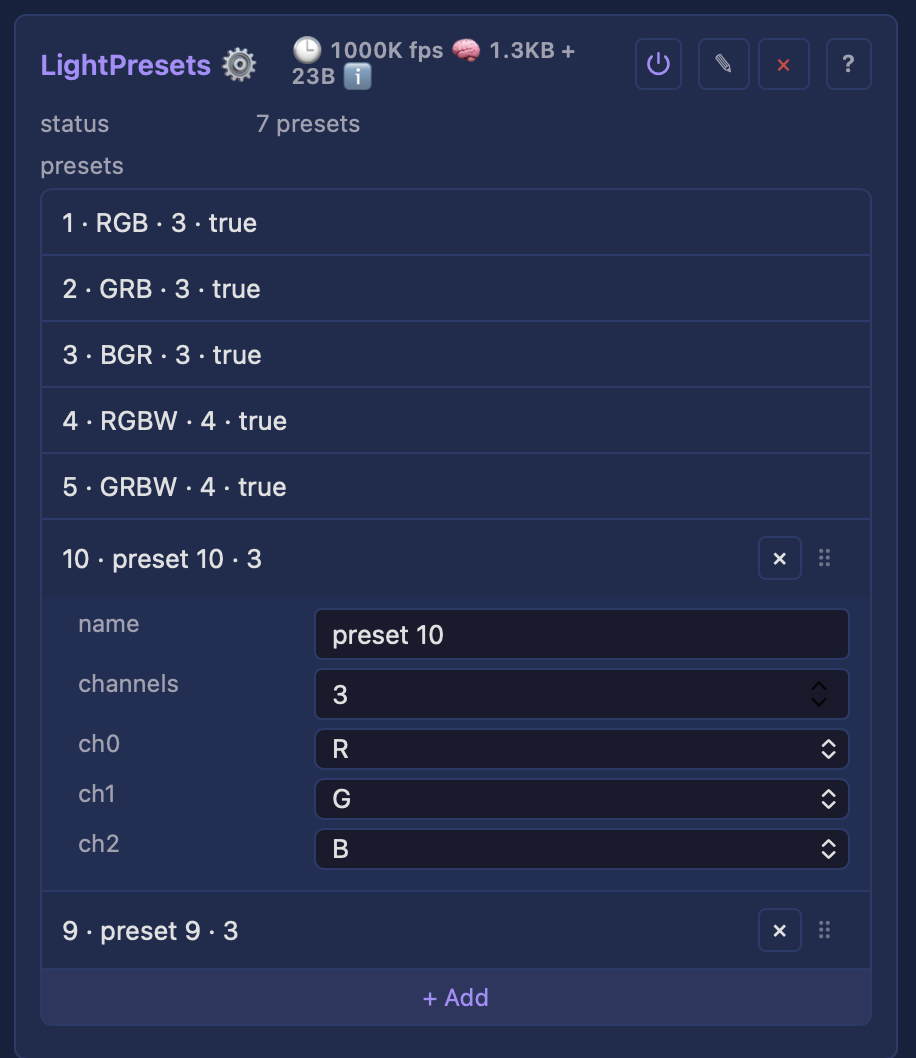

The editable-list primitive

The first consumer of EditableListSource. The whole add, delete, reorder and edit surface is reused rather than rebuilt. The per-row fields are the name, the channel count, and one role picker per channel.
