BouncingBallsEffect

Source: BouncingBallsEffect.h

Ball¶

struct Ball

src/light/effects/BouncingBallsEffect.h:117

One ball's persistent state, height being recomputed analytically each frame.

Public Attributes¶

float impactVelocity = 0.0f : its speed leaving the last bounce

uint32_t lastBounceTime = 0 : when that bounce happened, which starts its clock

BouncingBallsEffect¶

class BouncingBallsEffect

src/light/effects/BouncingBallsEffect.h:27

Inherits: EffectBase

Physics effect: gravity-bounced balls trailing along the layer.

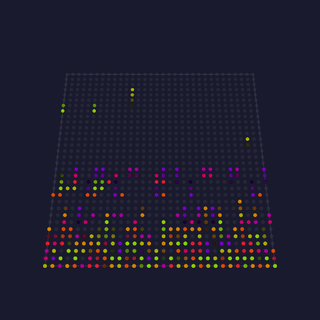

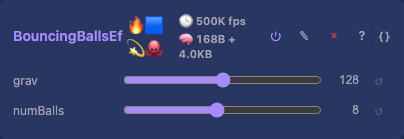

BouncingBallsEffect card BouncingBallsEffect controls Author: Andrew Tuline (WLED-SR), via the predecessor, https://github.com/ewowi/MoonLight/blob/main/src/MoonLight/Nodes/Effects/E_WLED.h

One column of balls per x, each launched upward and bouncing with energy loss. A ball is relaunched once its velocity dies out. Every column runs independently, so a panel shows a forest of bouncing dots.

Prior art: MoonLight's BouncingBalls, generalizing WLED's own from the FastLED demo lineage.

Public Attributes¶

uint8_t grav = 128 : Gravity's strength, where higher falls faster.

uint8_t numBalls = 8 : How many balls each column carries.

Public Methods¶

virtual inline const char * tags() const override : Catalog tags: MoonLight origin, WLED lineage.

virtual inline Dim dimensions() const override : Writes the z=0 slice, one ball column per x, which extrude duplicates through a volume.

virtual inline void defineControls() override : Publish gravity and the ball count.

virtual inline void prepare() override : Size one ball array per column, flattened, which zero-fills into a first-frame bounce.

virtual inline void tick() override : Advance every ball on its own clock, bouncing and relaunching, and draw each one.

Public Static Attributes¶

constexpr uint8_t maxNumBalls = 16 : The per-column ceiling, and the stride of the flattened ball array.

More info¶

The motion is analytic, not integrated¶

A ball's height is the projectile equation evaluated against its own clock. So the trajectory is real physics rather than a frame-step integration that drifts. Only impactVelocity and lastBounceTime carry between frames, and height is recomputed.

Reproduced from the source: its gravity, time scale, dampening, kick and palette spacing.
