Hardware builds
Hardware designed and produced by MoonModules.

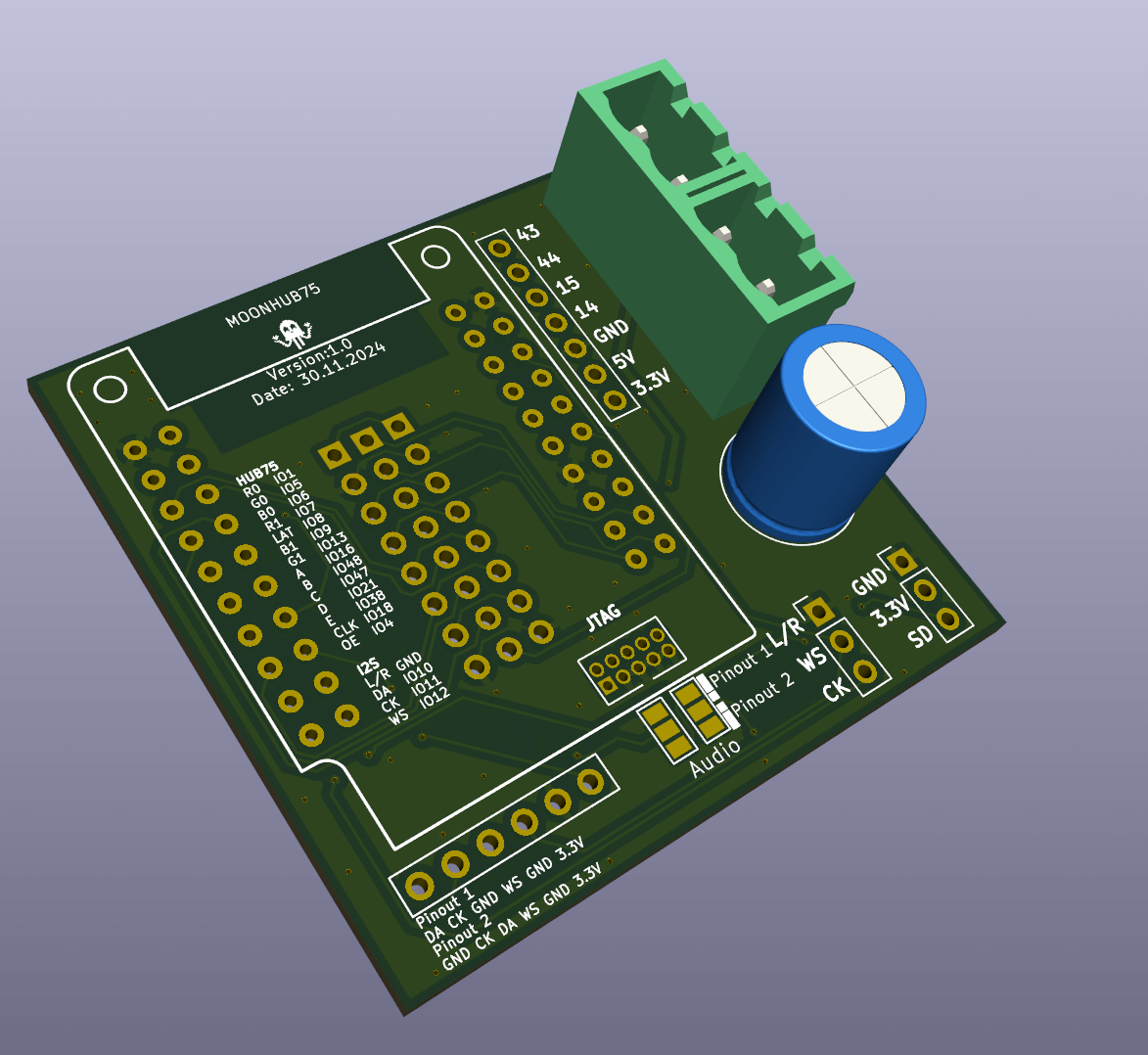

MoonHub75 PCB
A passive adapter board connecting a Lilygo T7-S3 to a HUB75 LED panel. The board includes multiple audio connections and an INMP441 microphone socket. All production files (Gerber, BOM, CPL) are included in the hardware repository, making it straightforward to order from any online PCB manufacturer.
WLED-MM has a dedicated build for this board.
Designed by Sören (lost-hope)
Components needed: - Lilygo T7-S3 - INMP441 microphone
Hardware repository · HUB75 instructions for WLED-MM

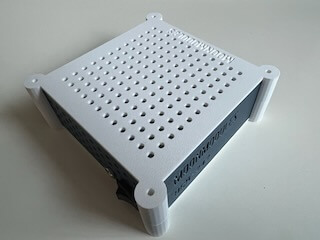

Universal Control Box
A 3D-printed enclosure for ESP32-based lighting controllers, designed for use in real projects and professional setups. The box has a modular side-plate system: swap in plates with different cutouts for switches, connectors, and indicators. Perforated sides allow airflow and cable routing through screw terminals.
Three sizes are available, each printable directly to a Bambu Labs printer or via STL files on Makerworld:
| Size | Fits |
|---|---|
| 8.5×4×2 cm | Olimex ESP32-P4 |
| 8×8×3 cm | Serg Universal Shield |
| 12×12×5 cm | 10×10 cm prototype PCB and multiple add-ons |
The 12×12 box also supports an on/off switch, power plug, W5500 Ethernet module, I2S audio module, and DMX/XLR connectors. Side plate dimensions are published so you can design your own.
Designed by Ewowi
